As a kid, it was all about cotton candy, the giant lollipop, and taffy. Now, the stickiness you crave is for more traction on the trail. The low center of gravity and always-active suspension of the YDX-MORO will keep your tread firmly planted corner after corner after corner. Even if you're riding with your dentist.

MSRP

4,799

Color

Desert Yellow

Start Your Journey

YDX-MORO GALLERY

The emotional connection between rider and bike is only as strong as the physical connection between the bike and the ground.



YDX-MORO FEATURES

Travel when you need it. Power when you want it. Technology when you like it.

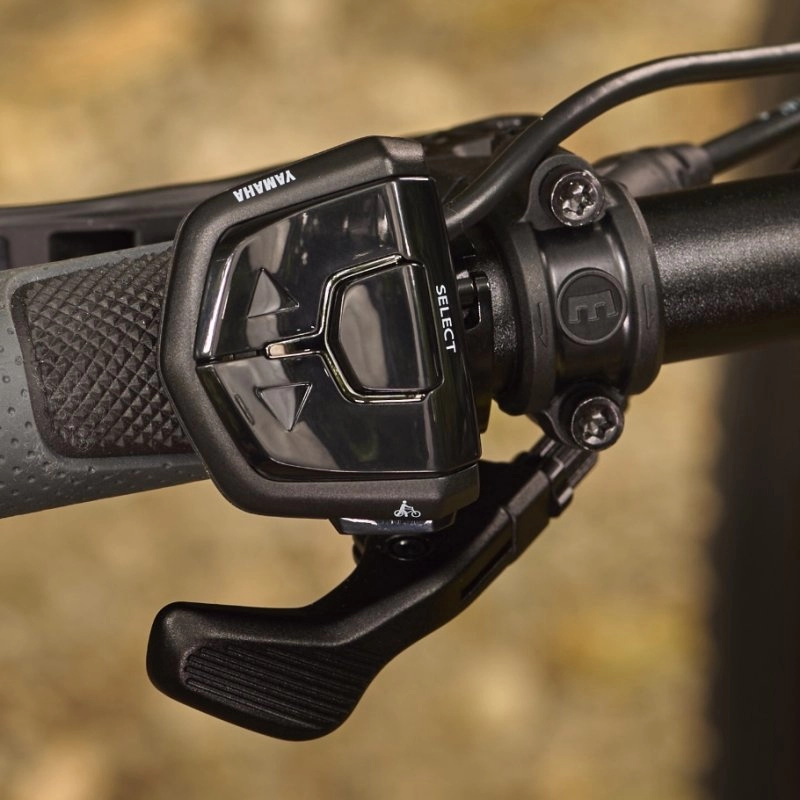

PW-X2 Control Switch

PW-X2 Control Switch

Our sleek and newly designed PW-X2 control switch maintains the ergonomic and tactile feel found on our other bicycles while adding a push assist feature button.

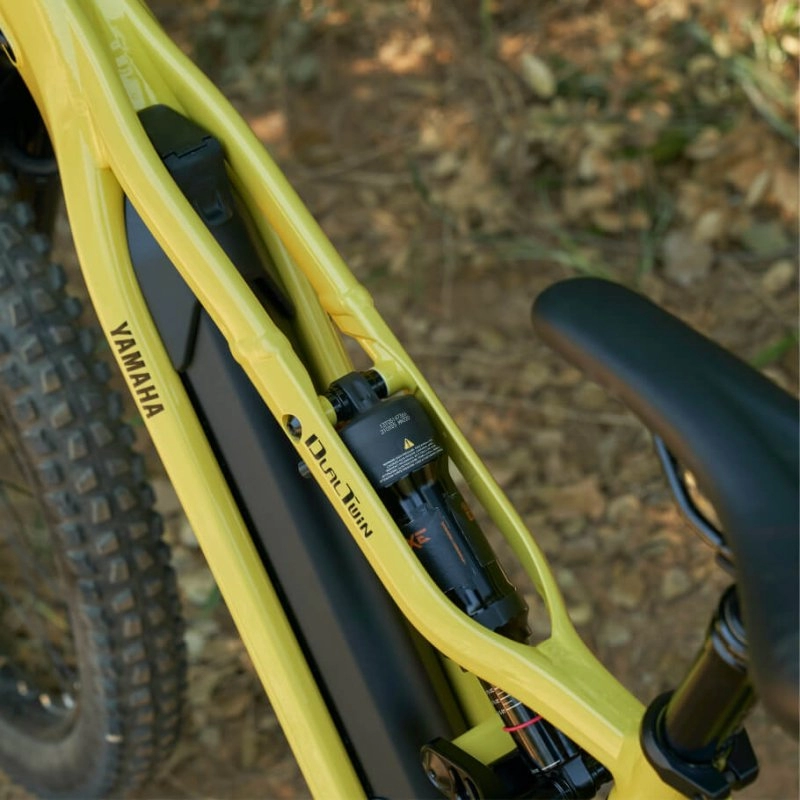

Dual Twin™ Frame

Dual Twin™ Frame

Combining hydroforming and forging techniques, our patented Dual Twin™ frame design provides precise handling and surrounds both rear shock and battery resulting in security, protection and a low center of gravity full suspension frame.

All-New Modes

All-New Modes

Our NEW MTB mode offers a direct feeling assist suited for pedaling through tight corners and riding technical lines while AUTO support mode automatically switches between ECO, STD, and HIGH to provide optimal assist according to ride conditions.

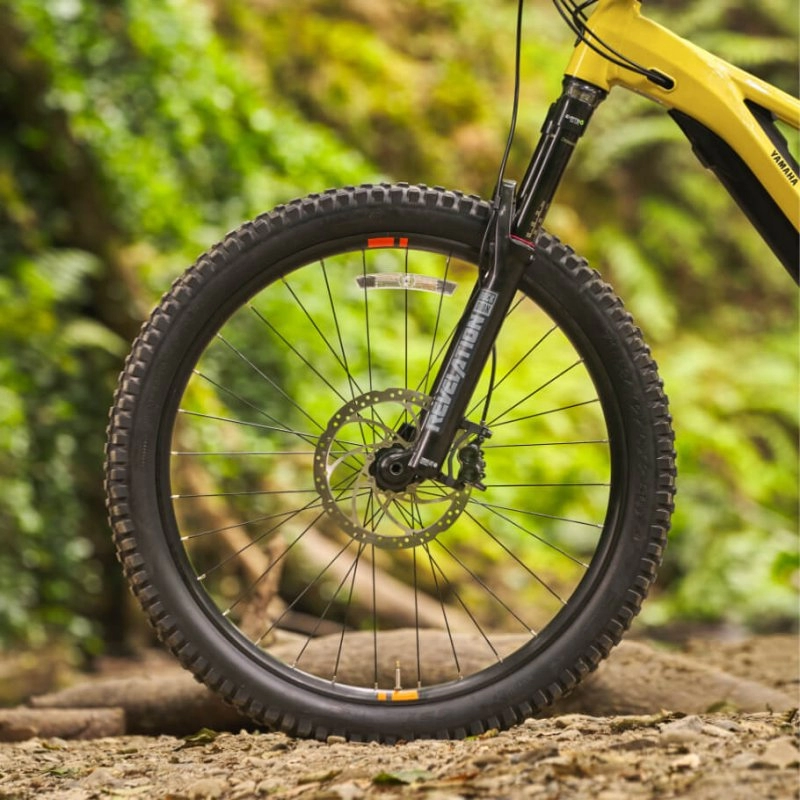

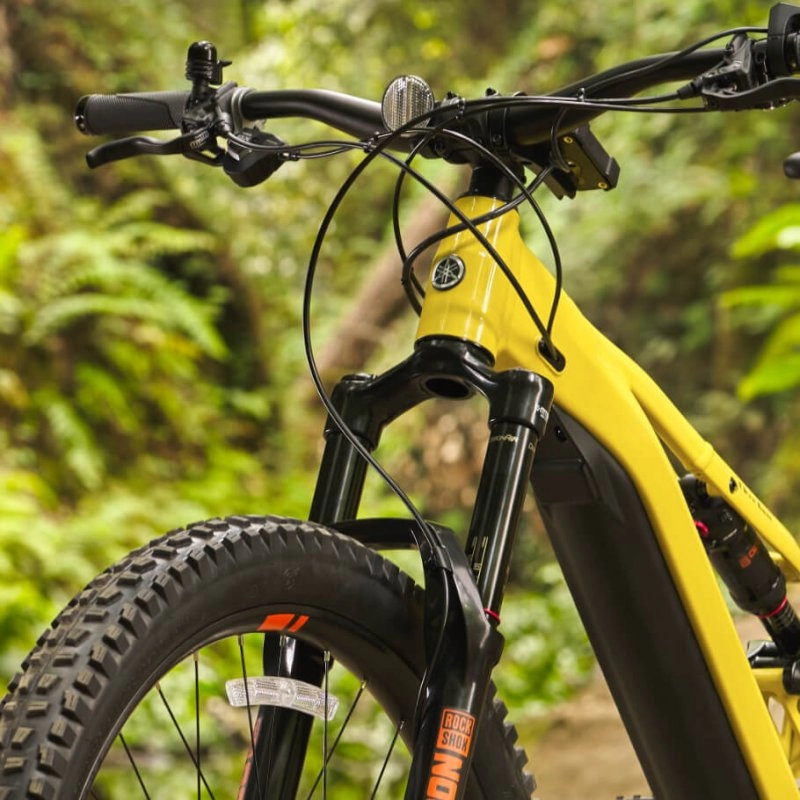

160MM Fork Travel

160MM Fork Travel

Easily tuned for a custom, buttery smooth feel, the 160mm travel fork maintains a higher ride height for ultimate confidence when riding steep and rough terrain.

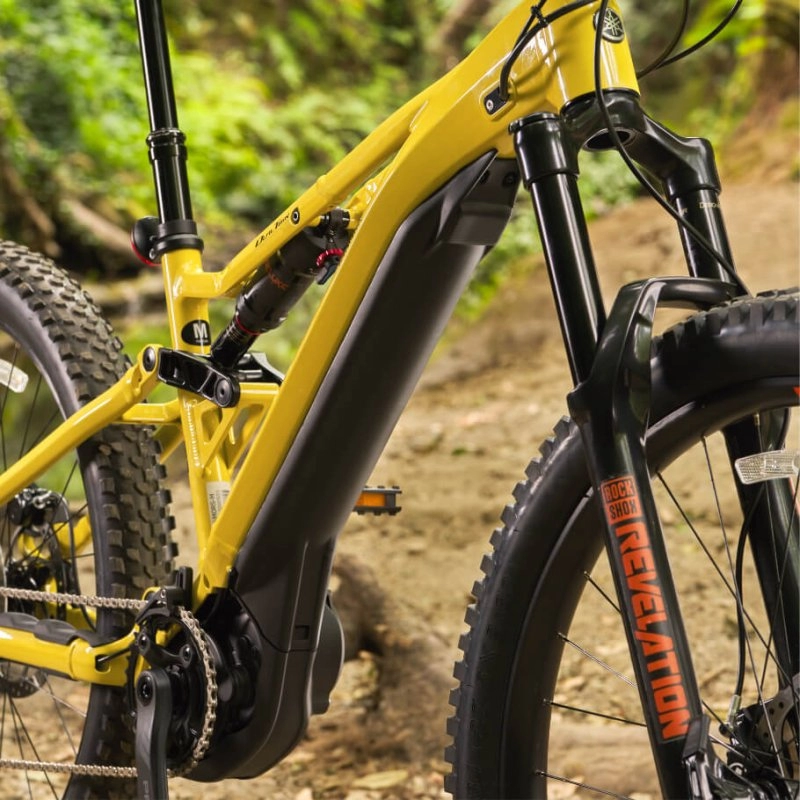

Battery Cover

Battery Cover

Protected in the lower cage of the dual twin frame is our 500Wh battery protected by our subframe battery jacket.

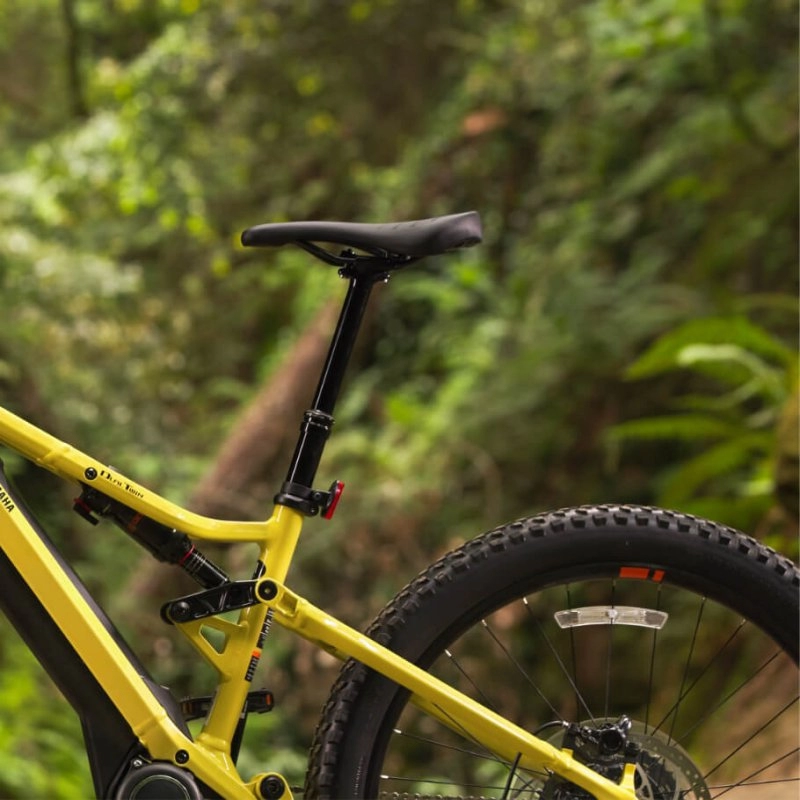

Integrated Dropper Post

Integrated Dropper Post

Push lever control allows you to adjust your saddle height from your handlebar. A quick push of the lever allows you to lower your center of gravity so you can descend, corner, and jump more easily.

27.5+ Wheelset

27.5+ Wheelset

With internal rim width of 40mm, our Yamaha-designed 27.5+ alloy wheelset is built with Boost hub spacing for a more direct chainline in the rear wheel and wider hub flange for increase spoke strength to the rim.

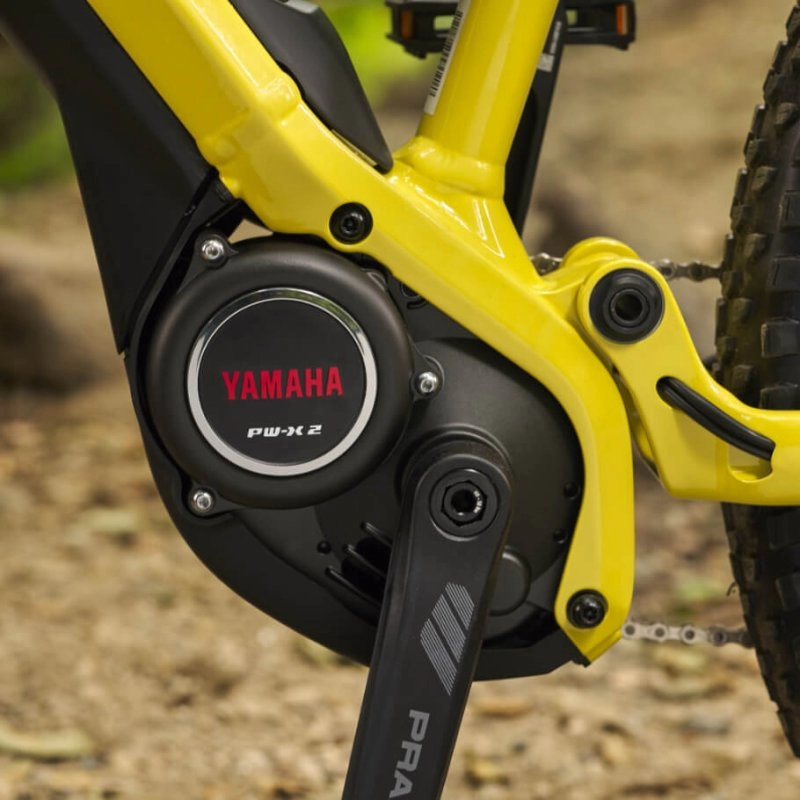

PW-X2 Drive Unit

PW-X2 Drive Unit

Now with an angle sensor for use in our All-New Auto support mode, new helical driven gears for less noise, and brand new programming to support an increase cadence support (now up to 170rpm) and the added push assist feature.

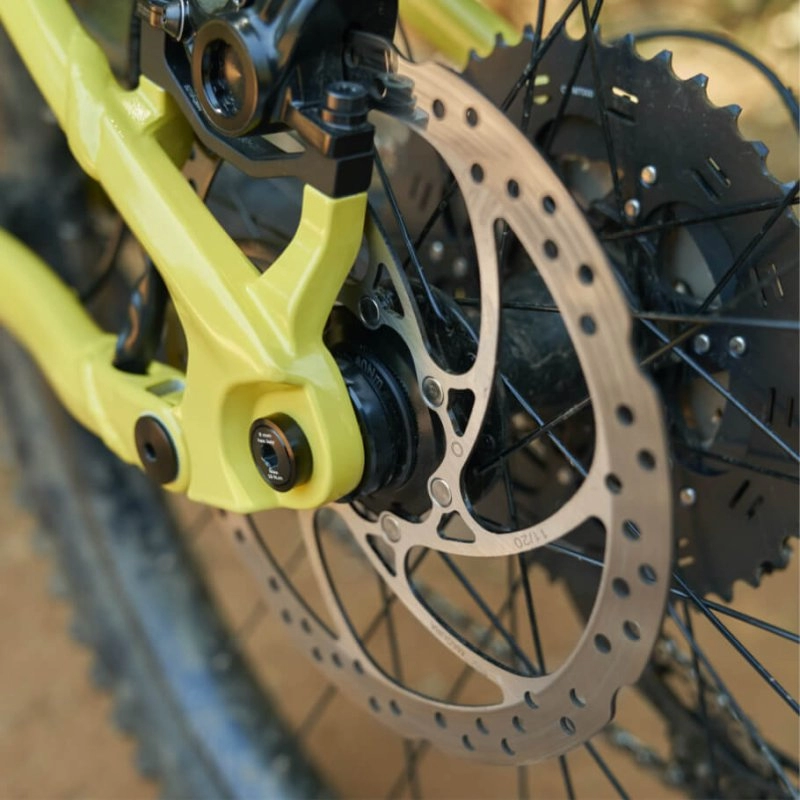

Speed Sensor Rear Hub

Speed Sensor Rear Hub

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

  • PW-X2 Control Switch

    Our sleek and newly designed PW-X2 control switch maintains the ergonomic and tactile feel found on our other bicycles while adding a push assist feature button.

  • Dual Twin™ Frame

    Combining hydroforming and forging techniques, our patent pending Dual Twin™ frame design provides precise handling and surrounds both rear shock and battery resulting in security, protection and a low center of gravity full suspension frame.

  • All-New Modes

    Our NEW MTB mode offers a direct feeling assist suited for pedaling through tight corners and riding technical lines while AUTO support mode automatically switches between ECO, STD, and HIGH to provide optimal assist according to ride conditions.

  • 160MM Fork Travel

    Easily tuned for a custom, buttery smooth feel, the 160mm travel fork maintains a higher ride height for ultimate confidence when riding steep and rough terrain.

  • Battery Cover

    Protected in the lower cage of the dual twin frame is our 500Wh battery protected by our subframe battery jacket.

  • Integrated Dropper Post

    Push lever control allows you to adjust your saddle height from your handlebar. A quick push of the lever allows you to lower your center of gravity so you can decend, corner, and jump more easily.

  • 27.5+ Wheelset

    With internal rim width of 40mm, our Yamaha-designed 27.5+ alloy wheelset is built with Boost hub spacing for a more direct chainline in the rear wheel and wider hub flange for increase spoke strength to the rim.

  • PW-X2 Drive Unit

    Now with an angle sensor for use in our All-New Auto support mode, new helical driven gears for less noise, and brand new programming to support an increase cadence support (now up to 170rpm) and the added push assist feature.

  • Speed Sensor Rear Hub

    Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

Shop All E-Bike Accessories

Shop Now



SPECIFICATIONS



SUGGESTED USE All-Mountain
COLORS

Desert Yellow  Desert Yellow
SIZE

SMALL, MEDIUM, LARGE
MSRP $4,799
TOTAL WEIGHT 53.3lb (M)
MOTOR PW-X2
Center mount
ISIS splined spindle
Quad Sensor System with integrated speed sensor as part of rear hub
Weight: 6.83lb
Rated power: 250W (Nominal), 500W (Max)
Max torque: 80Nm
Max cadence support: 170rpm
Max speed support: 20mph
Support modes: ECO, STD, HIGH, EXPW, AUTOMATIC (ECO-STD-HIGH)
Protective motor cover included

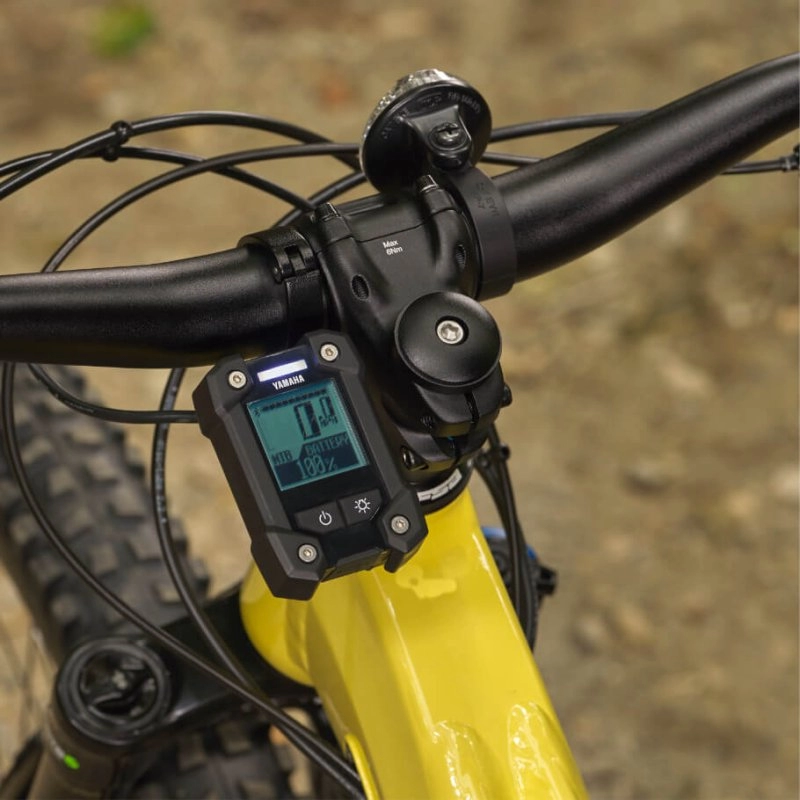

CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (5) Power-level control switch, plus AUTOMATIC support mode, control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, 3-color LED power assist level light indicator and push assist button

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Multilocation with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME Yamaha Dual Twin Frame
Tapered headtube
Internal cable/housing routing
2-bolt motor mount
12 x 148 rear spacing
Integrated speed sensor harness
FORK

RockShox Revelation RC Boost 160mm
Tapered aluminum steerer, 1 1/8in - 1 1/2in
REAR SHOCK

RockShox Deluxe Select +
210mm/55mm
150mm travel
HEADSET Integrated tapered headset with headset spacers
STEM Yamaha Alloy 4-bolt faceplate
35.0 diameter
40mm length
HANDLEBAR Alloy 30mm riser bar
35.0mm diameter
780mm width
GRIPS/TAPE Locking Dual Core
SEATPOST/SADDLE CLAMP Alloy 30.9mm dropper post (S/M) 125mm travel, (L) 150mm travel
SEATPOST COLLAR Single-bolt 35.0mm
SADDLE Yamaha Anti-slip finish with hand rail tail
SHIFTERS Shimano SLX
11-speed
FRONT DERAILLEUR N/A
REAR DERAILLEUR Shimano SLX Long-Cage
CRANKARM PRAXIS ISIS
170mm
CHAIN KMC e11 Turbo
CASSETTE Shimano SLX
11-speed
11/46T
CHAINRING(S) Praxis Wave 36T 104 BCD
BRAKES/ROTORS Magura MT30 Front: 4-piston Rear: 2-piston
203mm Storm CL Rotors
RIMS Yamaha 27.5+ Alloy
Tubeless tape installed
Width: 46mm (OUTSIDE) 40mm (INSIDE)
SPOKES Spokes SUS304
SPOKE NIPPLES Brass
HUBS Anodized
Centerlock brake mount
Front hub 15 x 110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES Rear: CST Patrol 27.5 x 2.8in Front: CST BFT 27.5 x 2.8in
Tubeless compatible rim
Tubeless compatible rim strip
ACCESSORIES Bell
(No keys)
WARRANTY 3-Year on Frame, Motor, Battery*
Component Manufacturer's warranty** is supported by Yamaha



Specifications are subject to change without notice

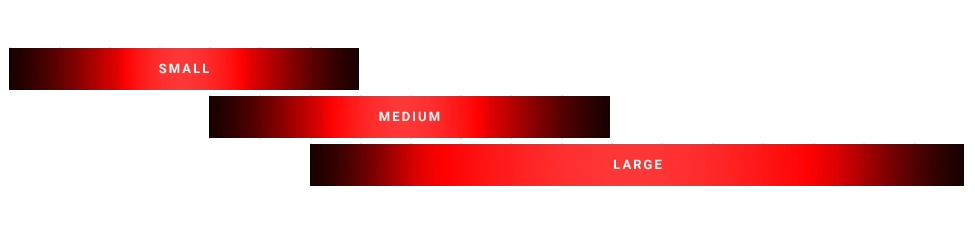

Sizing & Fit

YDX-Moro Sizing and Fit

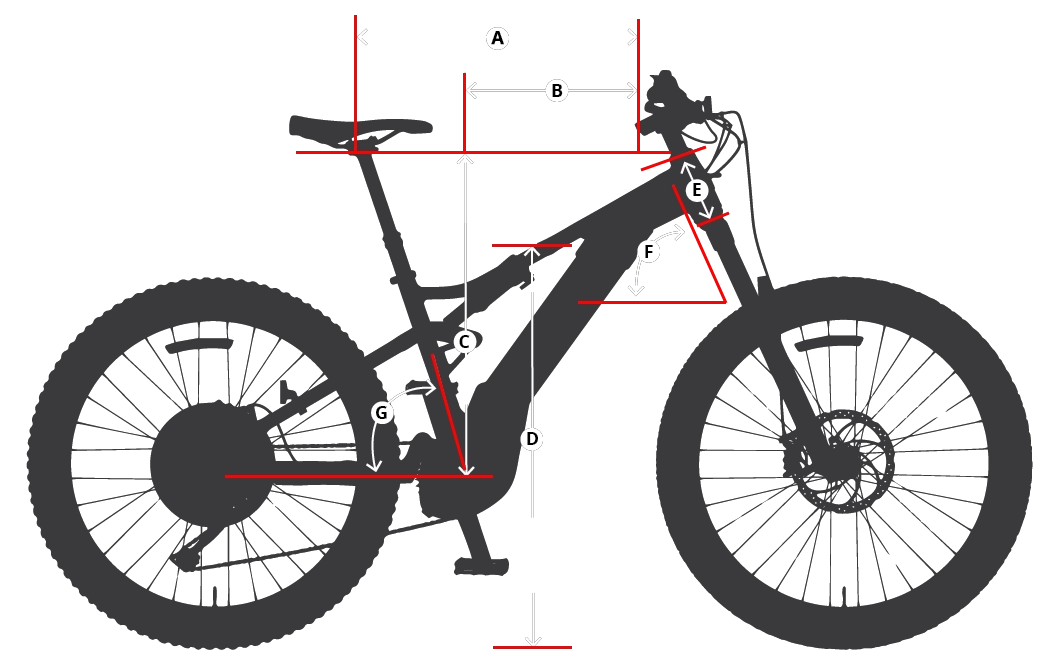

GEOMETRY


S

A TOP TUBE (mm) 572
B REACH LENGTH (mm) 388
C STACK HEIGHT (mm) 611
D STANDOVER HEIGHT (mm) 746
E HEAD TUBE LENGTH (mm) 111
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
  HANDLEBAR WIDTH (mm) 780
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 412
  STEM LENGTH (mm) 40
  BB DROP (mm) 19
  REAR CENTER (mm) 469
  WHEELBASE (mm) 1157
  SEAT TUBE LENGTH (mm) 390

M

A TOP TUBE (mm) 619
B REACH LENGTH (mm) 432
C STACK HEIGHT (mm) 619
D STANDOVER HEIGHT (mm) 755
E HEAD TUBE LENGTH (mm) 120
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
  HANDLEBAR WIDTH (mm) 780
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 459
  STEM LENGTH (mm) 40
  BB DROP (mm) 19
  REAR CENTER (mm) 469
  WHEELBASE (mm) 1205
  SEAT TUBE LENGTH (mm) 400

L

A TOP TUBE (mm) 666
B REACH LENGTH (mm) 478
C STACK HEIGHT (mm) 624
D STANDOVER HEIGHT (mm) 763
E HEAD TUBE LENGTH (mm) 125
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
  HANDLEBAR WIDTH (mm) 780
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 459
  STEM LENGTH (mm) 40
  BB DROP (mm) 19
  REAR CENTER (mm) 469
  WHEELBASE (mm) 1253
  SEAT TUBE LENGTH (mm) 410
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 572 619 666
B REACH LENGTH (mm) 388 432 478
C STACK HEIGHT (mm) 611 619 624
D STANDOVER HEIGHT (mm) 746 755 763
E HEAD TUBE LENGTH (mm) 111 120 125
F HEAD TUBE ANGLE 66.3° 66.3° 66.3°
G SEAT TUBE ANGLE 70.3° 70.3° 70.3°
  HANDLEBAR WIDTH (mm) 780 780 780
  CRANK ARM LENGTH (mm) 170 170 170
  SEAT POST LENGTH (mm) 412 459 459
  STEM LENGTH (mm) 40 40 40
  BB DROP (mm) 19 19 19
  REAR CENTER (mm) 469 469 469
  WHEELBASE (mm) 1157 1205 1253
  SEAT TUBE LENGTH (mm) 390 400 410



GEOMETRY & SIZING


S

A TOP TUBE (mm) 572
B REACH LENGTH (mm) 388
C STACK HEIGHT (mm) 611
D STANDOVER HEIGHT (mm) 746
E HEAD TUBE LENGTH (mm) 111
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
  HANDLEBAR WIDTH (mm) 780
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 412
  STEM LENGTH (mm) 40
  BB DROP (mm) 19
  REAR CENTER (mm) 469
  WHEELBASE (mm) 1157
  SEAT TUBE LENGTH (mm) 390

M

A TOP TUBE (mm) 619
B REACH LENGTH (mm) 432
C STACK HEIGHT (mm) 619
D STANDOVER HEIGHT (mm) 755
E HEAD TUBE LENGTH (mm) 120
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
  HANDLEBAR WIDTH (mm) 780
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 459
  STEM LENGTH (mm) 40
  BB DROP (mm) 19
  REAR CENTER (mm) 469
  WHEELBASE (mm) 1205
  SEAT TUBE LENGTH (mm) 400

L

A TOP TUBE (mm) 666
B REACH LENGTH (mm) 478
C STACK HEIGHT (mm) 624
D STANDOVER HEIGHT (mm) 763
E HEAD TUBE LENGTH (mm) 125
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
  HANDLEBAR WIDTH (mm) 780
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 459
  STEM LENGTH (mm) 40
  BB DROP (mm) 19
  REAR CENTER (mm) 469
  WHEELBASE (mm) 1253
  SEAT TUBE LENGTH (mm) 410
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 572 619 666
B REACH LENGTH (mm) 388 432 478
C STACK HEIGHT (mm) 611 619 624
D STANDOVER HEIGHT (mm) 746 755 763
E HEAD TUBE LENGTH (mm) 111 120 125
F HEAD TUBE ANGLE 66.3° 66.3° 66.3°
G SEAT TUBE ANGLE 70.3° 70.3° 70.3°
  HANDLEBAR WIDTH (mm) 780 780 780
  CRANK ARM LENGTH (mm) 170 170 170
  SEAT POST LENGTH (mm) 412 459 459
  STEM LENGTH (mm) 40 40 40
  BB DROP (mm) 19 19 19
  REAR CENTER (mm) 469 469 469
  WHEELBASE (mm) 1157 1205 1253
  SEAT TUBE LENGTH (mm) 390 400 410
