YDX-Moro 07

YDX-Moro 07

Overview

Find a Dealer

Fortune tellers will be looking for new jobs when this bike hits your trails. With geometry enchanted to help you predict the future and power delivery characteristics that will raise your spirits, the YDX-MORO 07 will inspire you to go for one more loop.

MSRP

6,399

Color

Dual Blue   Raven Silver

Start Your Journey

YDX-MORO 07 GALLERY

Performance evolution created from true innovation.



YDX-MORO 07 FEATURES

Harnessing our latest technology for everyday functionality with truly electric performance.

super minimalist communication display

Reduce Your Screen Time

Whether you’re challenging your physical endurance in ECO mode or discovering the place where ultimate control and performance meet the trail in EXPW mode, the super minimalist communication display of the Interface X is there for what you need and nothing you don't.

buttery smooth rear shock

Luxury Feel with Engineered Purpose

This buttery smooth rear shock with 15 clicks of rebound adjustment, dual-level compression quick switch, and adjustable air pressure options result in a positively bespoke suspension experience.

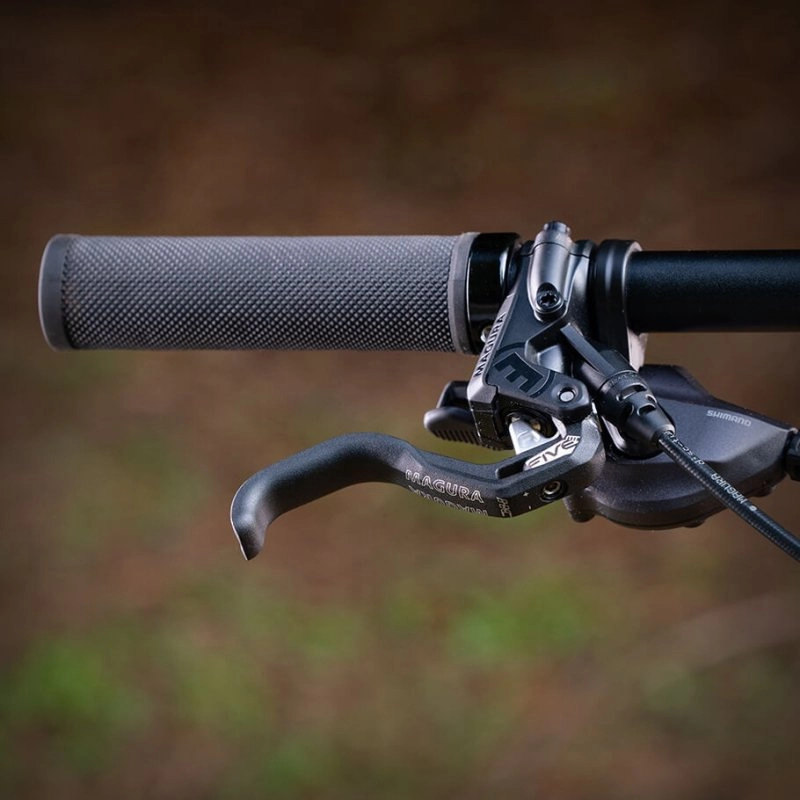

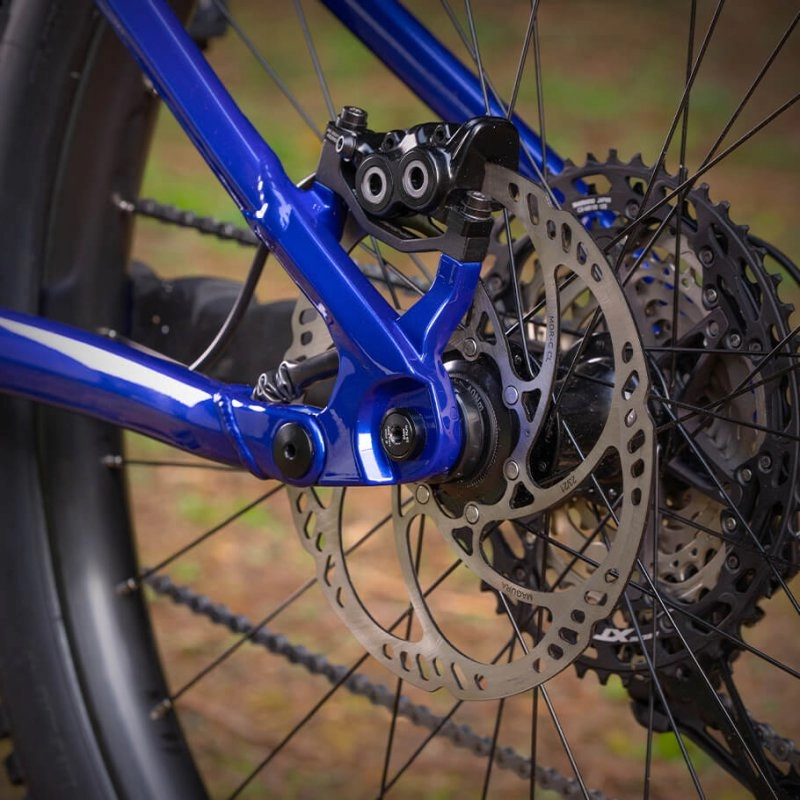

ultimate braking power

One-Finger Stopping

Outstanding stopping performance with the absolute best possible modulation requires only one finger. Feel the ultimate braking power of one-piece construction in the 4-Piston front and rear calipers paired with radial design master cylinders.

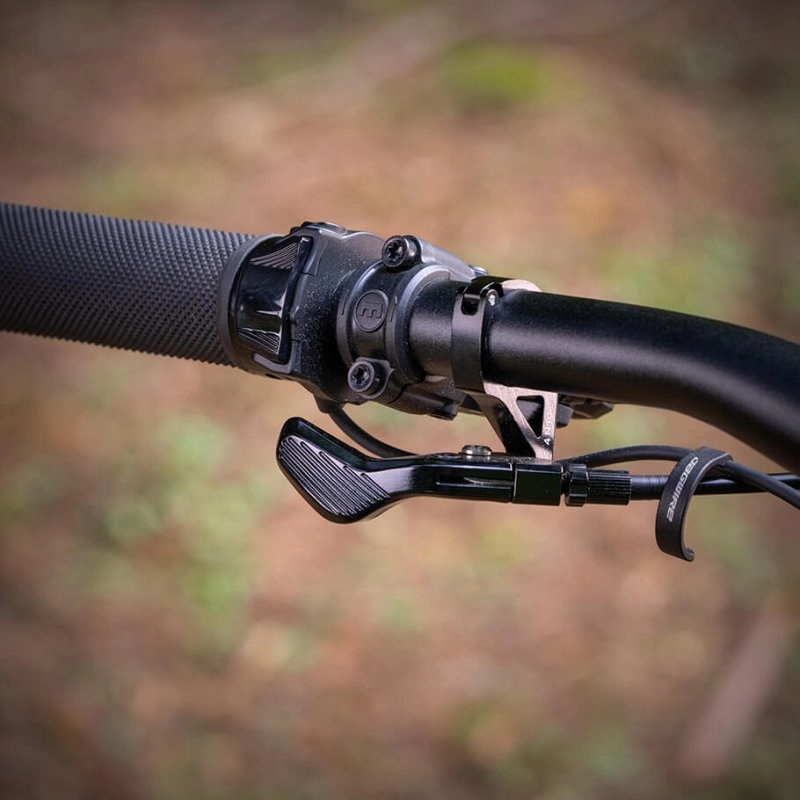

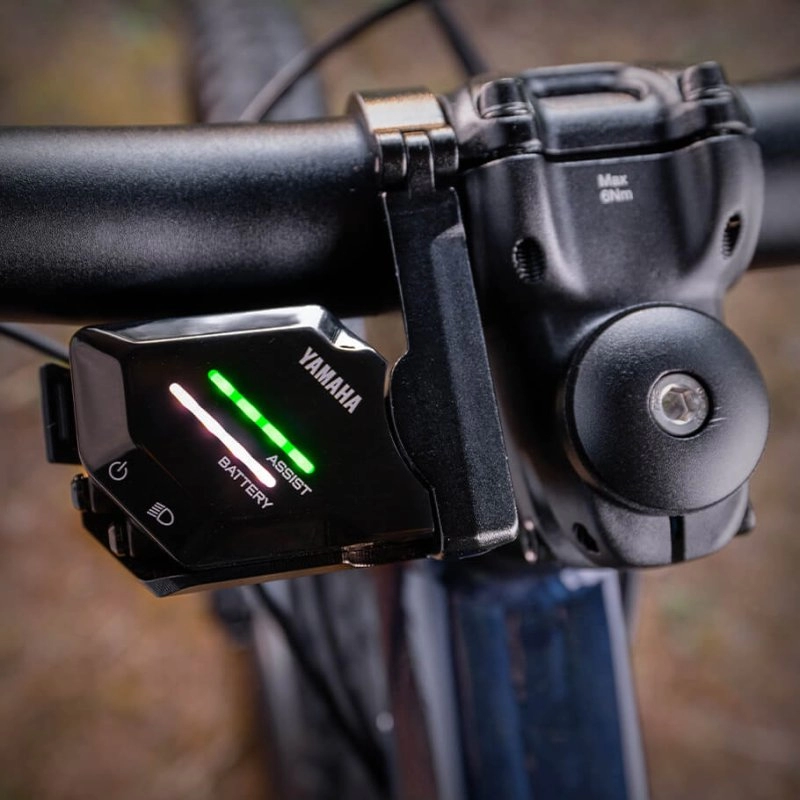

All-New Interface X

Sightless Controls

Minimalist aesthetics require unquestionably exceptional design to meet functional performance requirements. The All-New Interface X meets those demands with intuitive movements to access power assist levels, walk assist, and automatic support modes in a bantam weight class.

PW-X3 Quad Sensor

Obsessed with Speed

Helping to deliver the most smooth and powerful assist available today, our PW-X3 Quad Sensor's rear hub speed sensor is high technology hidden in plain sight.

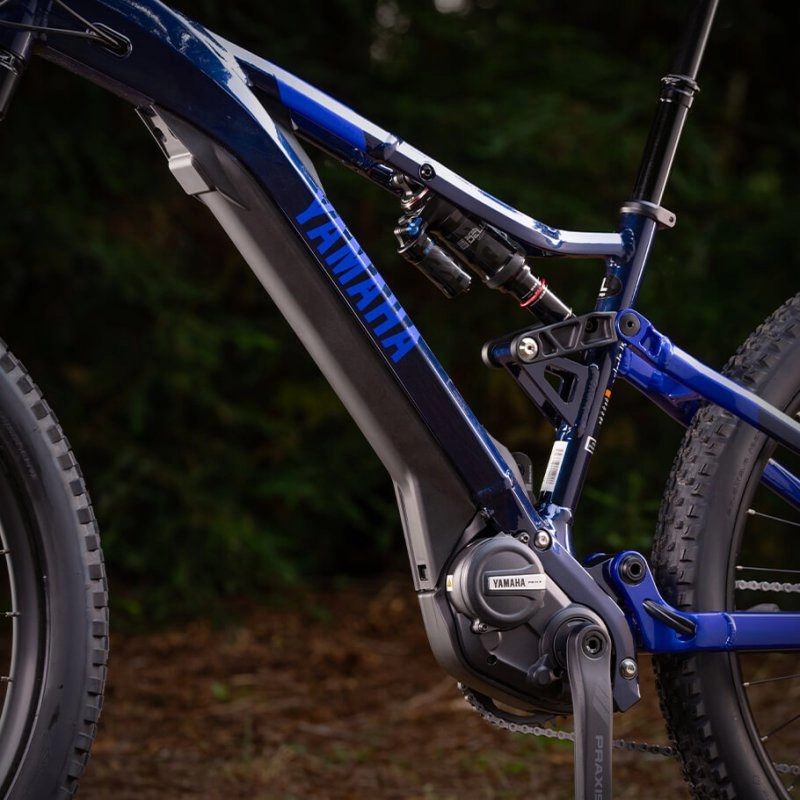

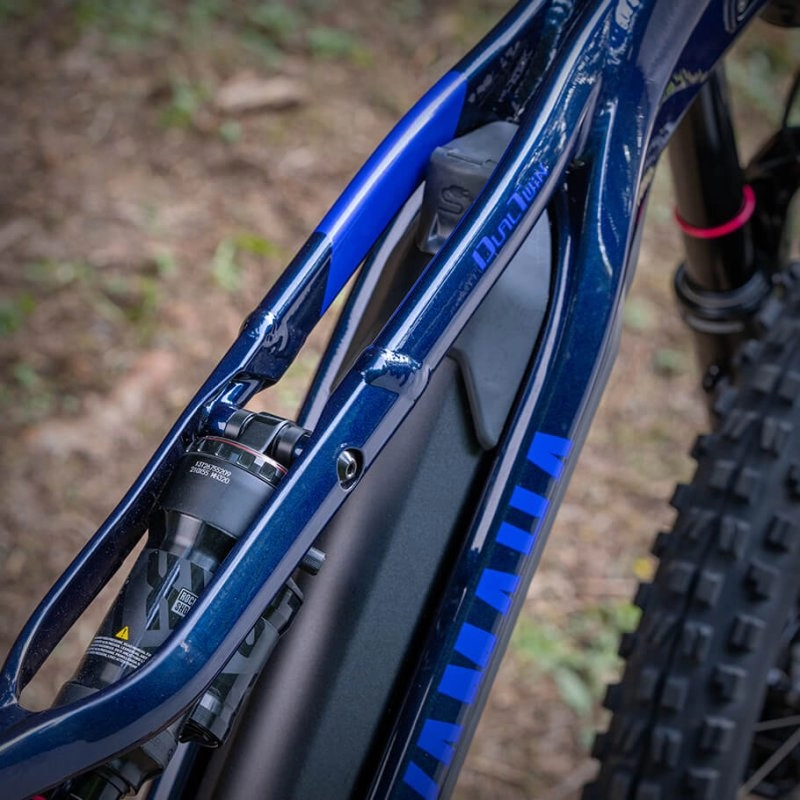

patented Dual Twin construct

Parallel tubes for unparalleled control

Your frame is the most powerful structure of your bicycle. Yamaha's patented Dual Twin construct combines hydroforming and forging techniques to create a frame to protect components with uncompromised riding control.

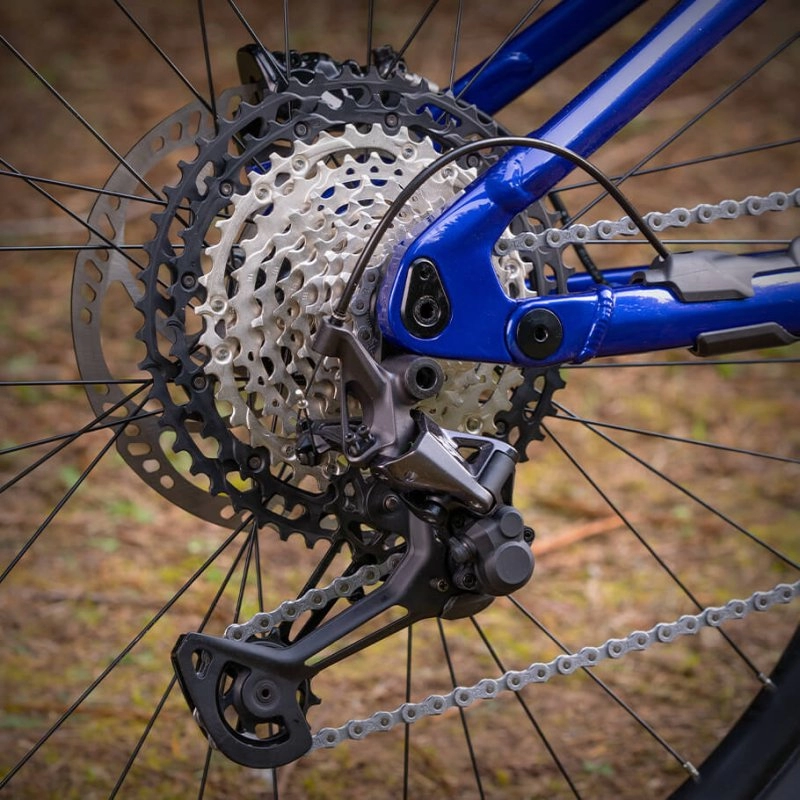

reduced derailleur travel and additional gears

More Gears!

Increased shifting precision with reduced derailleur travel and additional gears in the "sweet spot" for riders to find the best balance of power and cadence.

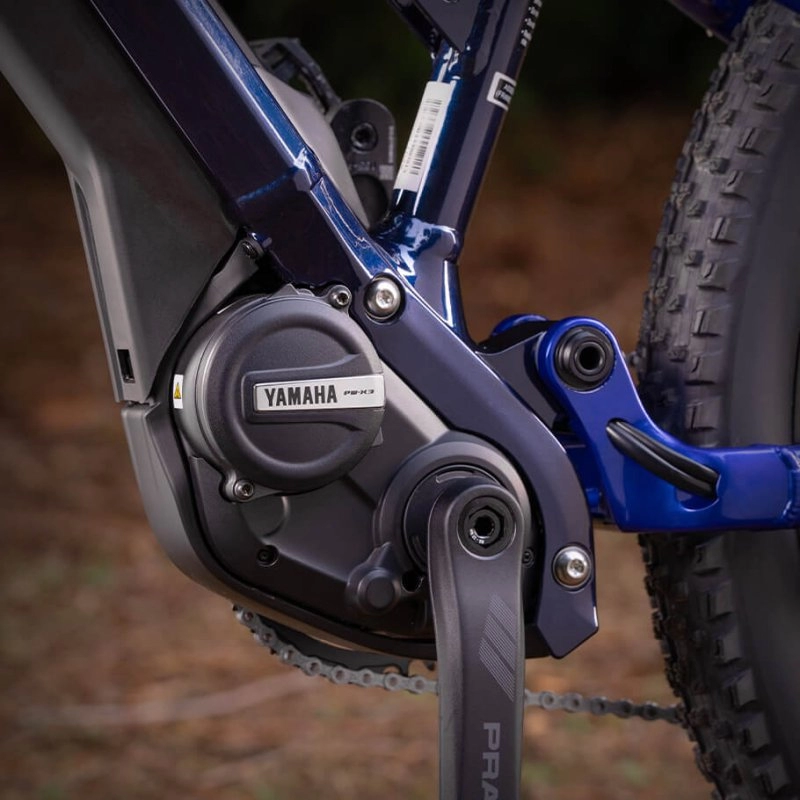

ALL-NEW PW-X3 mid drive motor

Lightning Fast, Feather Light

ALL-NEW PW-X3 mid drive motor is our smallest and lightest to date and ensures you the best power to weight ratio with jaw dropping responsiveness and smooth power delivery now with Garmin Edge 530, Edge 830, and Edge 1030 compatibility.

near-perfect weight distribution

Centralized Mass and Low CG

A combination that creates a near-perfect weight distribution for ultimate control on the ground or in the air.

  • Reduce Your Screen Time

    Whether you’re challenging your physical endurance in ECO mode or discovering the place where ultimate control and performance meet the trail in EXPW mode, the super minimalist communication display of the Interface X is there for what you need and nothing you don't.

  • Luxury Feel with Engineered Purpose

    This buttery smooth rear shock with 15 clicks of rebound adjustment, dual-level compression quick switch, and adjustable air pressure options result in a positively bespoke suspension experience.

  • One-Finger Stopping

    Outstanding stopping performance with the absolute best possible modulation requires only one finger. Feel the ultimate braking power of one-piece construction in the 4-Piston front and rear calipers paired with radial design master cylinders.

  • Sightless Controls

    Minimalist aesthetics require unquestionably exceptional design to meet functional performance requirements. The All-New Interface X meets those demands with intuitive movements to access power assist levels, walk assist, and automatic support modes in a bantam weight class.

  • Obsessed with Speed

    Helping to deliver the most smooth and powerful assist available today, our PW-X3 Quad Sensor's rear hub speed sensor is high technology hidden in plain sight.

  • Parallel tubes for unparalleled control

    Your frame is the most powerful structure of your bicycle. Yamaha's patented Dual Twin construct combines hydroforming and forging techniques to create a frame to protect components with uncompromised riding control.

  • More Gears!

    Increased shifting precision with reduced derailleur travel and additional gears in the "sweet spot" for riders to find the best balance of power and cadence.

  • Lightning Fast, Feather Light

    ALL-NEW PW-X3 mid drive motor is our smallest and lightest to date and ensures you the best power to weight ratio with jaw dropping responsiveness and smooth power delivery now with Garmin Edge 530, Edge 830, and Edge 1030 compatibility.

  • Centralized Mass and Low CG

    A combination that creates a near-perfect weight distribution for ultimate control on the ground or in the air.

CONTACT A DEALER

SHOP ACCESSORIES

WARRANTY OVERVIEW



SPECIFICATIONS



SUGGESTED USE All Mountain Class-1 Ebike Off-Road Trail
COLORS

Dual Blue  Dual Blue

Raven Silver  Raven Silver
SIZE

SMALL, MEDIUM, LARGE
MSRP $6,399
TOTAL WEIGHT 51.3lb (M)
MOTOR YAMAHA PW-X3 Class 1 Labeled
Centermount
ISIS Splined Crankarm Spindle
YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes
Rate power: 250W (nominal), 500W (maximum)
Max torque: 85Nm
Max speed support: 20MPH
Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

YAMAHA Interface X  Control functions include: 3-color LED support-mode level light indicator, (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator) and Walk Assist mode (Purple LED indicator), Bluetooth™ connectivity, 3-color LED support-mode level light indicator, LED brightness adjustability, battery capacity (4-LED capacity indicators)
BATTERY Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Anti-Vibration Mounting Plate
Weight: 6.61 lbs
500Wh 36V
Re-charge time: 1-hour 80%, 4-hour 100%
FRAME YAMAHA Dual Twin Frame
Tapered Headtube
Internal cable/housing routing
2-bolt drive unit mount
12x148 rear axle spacing
Integrated YAMAHA speed sensor harness
FORK

ROCKSHOX LYRIK SELECT
160mm TRAVEL
35mm Stanchions
Charger RC damper with Low-speed Compression and Reboundadjust
Compatible with RockShox premium short fender
Upgradeable to new Pressure Relief Values via RockShox
REAR SHOCK

ROCKSHOX SUPER DELUXE SELECT +
Custom tuned for YAMAHA YDX-MORO 07
150mm travel
210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment
HEADSET Integrated tapered 1 1/8” -  1 1/2” (30mm of spacers)
STEM Alloy 4-both faceplate
35.0 diameter
40mm length
HANDLEBAR Alloy
35.0 diameter
780mm width
30mm rise
GRIPS VELO Single Ring Lock
SEATPOST/SADDLE CLAMP TRANS-X dropper post 30.9 dia.
TRAVEL (S) 125mm (M) 150mm (L) 170m
SEATPOST COLLAR Single-bolt 35.0mm
SADDLE YAMAHA anti-slip finish with hand rail tail
AXLES MAXLE 15MM X 110MM BOOST THRU AXLE
SHIFTERS Shimano XT SL-M8100-R
FRONT DERAILLEUR N/A
REAR DERAILLEUR Shimano XT RD-M8100-SGS
CRANKARM PRAXIS E-CRANK ARM 165mm LENGTH
CHAIN KMC eTURBO EPT 122 links
CASSETTE Shimano XT CS-M8100-12
12-spd (10-51T)
CHAINRINGS PRAXIS 36T
BRAKES/ROTORS MAGURA MT5 4-PISTON F/R 203MM CENTERLOCK ROTOR (F/R)
Single-Finger lever
RIMS YAMAHA 27.5+ Alloy
Tubeless tape installed
Width: 46mm (outside) 40mm (inside)
SPOKES 14g alloy SUS304
HUBS Anodized Alloy
Centerlock brake mount
15x110mm BOOST+ (front)
12x148mm MicroSpline freehub
Quick Release Thru Axle Type
TIRES/TUBES MAXXIS 27.5X2.6
(F) MINION DHF (R) REKON
ACCESSORIES Protective motor and battery covers
ISCG05 chainguuide Safety bell
VP Acrylic pedals
(No Keys)
WARRANTY 3-Year on Frame, Motor, Battery*
Component Manufacturer’s warranty** is  supported by YAMAHA



Specifications are subject to change without notice

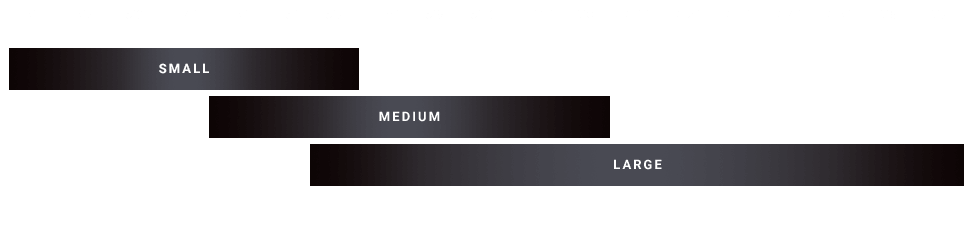

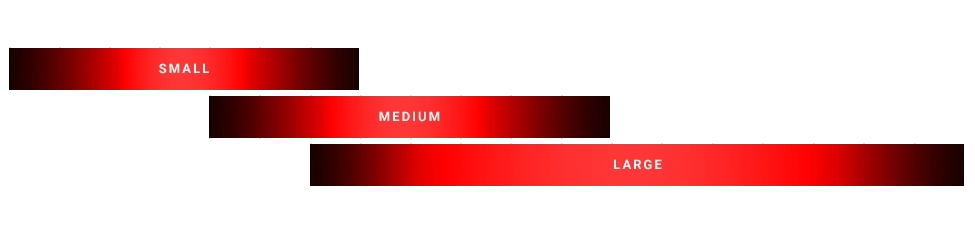

Sizing & Fit

YDX-Moro 07 Sizing and Fit

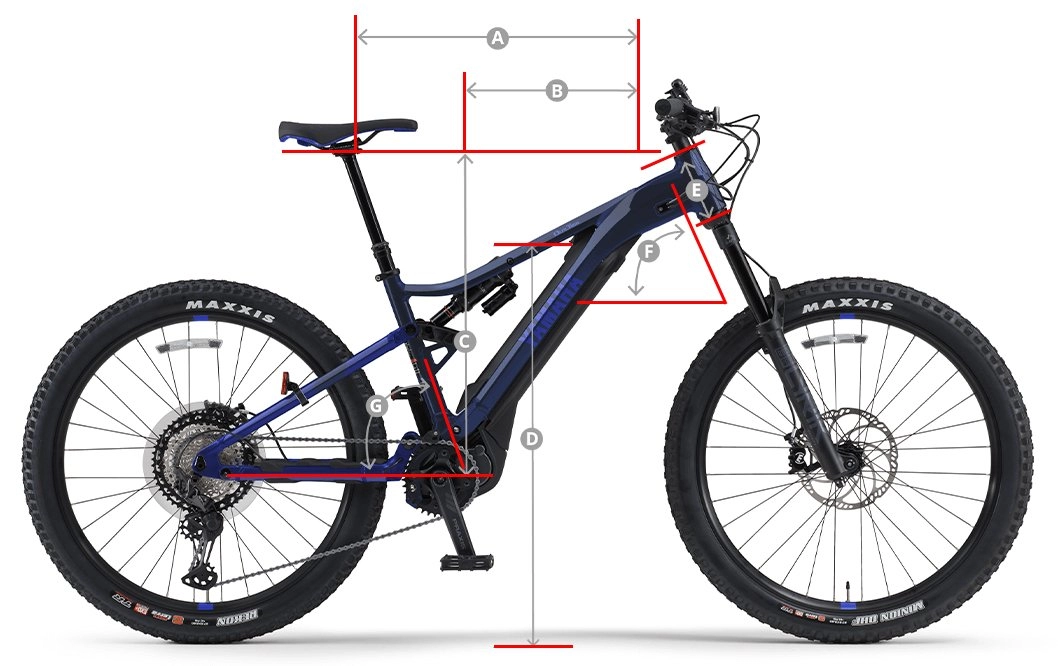

GEOMETRY


S

A TOP TUBE (mm) 572
B REACH LENGTH (mm) 393
C STACK HEIGHT (mm) 616
D STANDOVER HEIGHT (mm) 741
E HEAD TUBE LENGTH (mm) 110
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°

M

A TOP TUBE (mm) 619
B REACH LENGTH (mm) 437
C STACK HEIGHT (mm) 625
D STANDOVER HEIGHT (mm) 751
E HEAD TUBE LENGTH (mm) 120
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°

L

A TOP TUBE (mm) 666
B REACH LENGTH (mm) 482
C STACK HEIGHT (mm) 629
D STANDOVER HEIGHT (mm) 759
E HEAD TUBE LENGTH (mm) 125
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 572 619 666
B REACH LENGTH (mm) 393 437 482
C STACK HEIGHT (mm) 616 625 629
D STANDOVER HEIGHT (mm) 741 751 759
E HEAD TUBE LENGTH (mm) 110 120 125
F HEAD TUBE ANGLE 66.3° 66.3° 66.3°
G SEAT TUBE ANGLE 70.3° 70.3° 70.3°



GEOMETRY & SIZING


S

A TOP TUBE (mm) 572
B REACH LENGTH (mm) 393
C STACK HEIGHT (mm) 616
D STANDOVER HEIGHT (mm) 741
E HEAD TUBE LENGTH (mm) 110
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°

M

A TOP TUBE (mm) 619
B REACH LENGTH (mm) 437
C STACK HEIGHT (mm) 625
D STANDOVER HEIGHT (mm) 751
E HEAD TUBE LENGTH (mm) 120
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°

L

A TOP TUBE (mm) 666
B REACH LENGTH (mm) 482
C STACK HEIGHT (mm) 629
D STANDOVER HEIGHT (mm) 759
E HEAD TUBE LENGTH (mm) 125
F HEAD TUBE ANGLE 66.3°
G SEAT TUBE ANGLE 70.3°
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 572 619 666
B REACH LENGTH (mm) 393 437 482
C STACK HEIGHT (mm) 616 625 629
D STANDOVER HEIGHT (mm) 741 751 759
E HEAD TUBE LENGTH (mm) 110 120 125
F HEAD TUBE ANGLE 66.3° 66.3° 66.3°
G SEAT TUBE ANGLE 70.3° 70.3° 70.3°
