Made for roads and city. Point A to point B just got a whole lot sweeter. Experience the wind in your face, air in your lungs, and what life on two wheels has to offer. Enhance your everyday adventure with the new CrossCore RC. Charge. Pedal. GO!

MSRP

2,999

Color



Buy Online

Find a Retailer

Start Your Journey

CROSSCORE RC GALLERY

Rider Focused, Rider Inspired



CROSSCORE RC FEATURES

When passion meets purpose, the possibilities are endless. Yamaha’s CrossCore RC takes reliability, design, and functionality to new heights.

Creature comforts meets instinctive power.

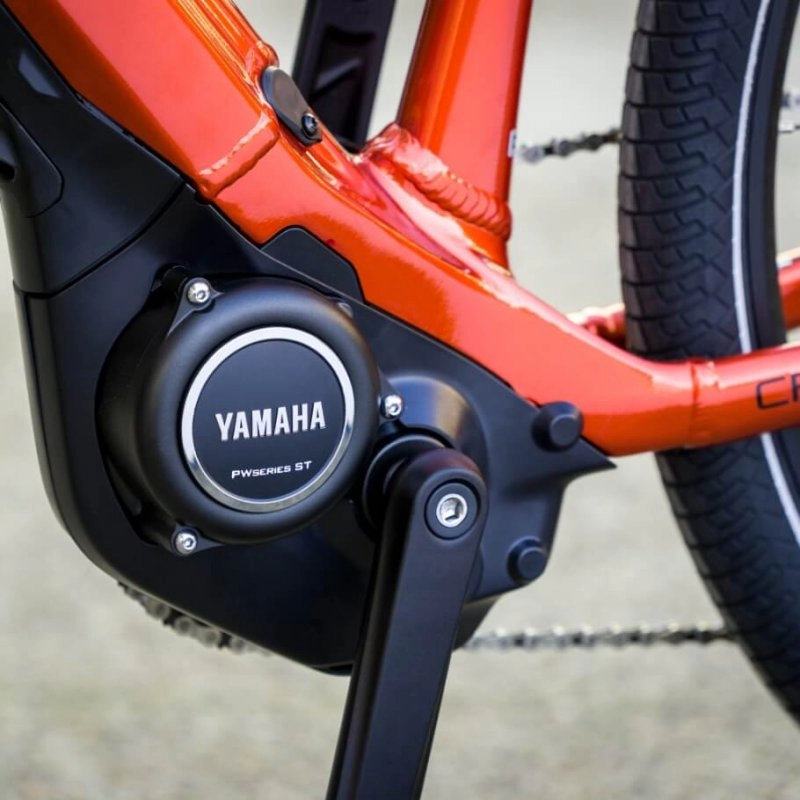

ALL-NEW PWSeriesST

ALL-NEW PWSeriesST

With pedal assist power up to 28mph, Yamaha's Quad Sensor System delivers assist in all conditions and offers a broad range of power assist modes that work great for many different styles of riding.

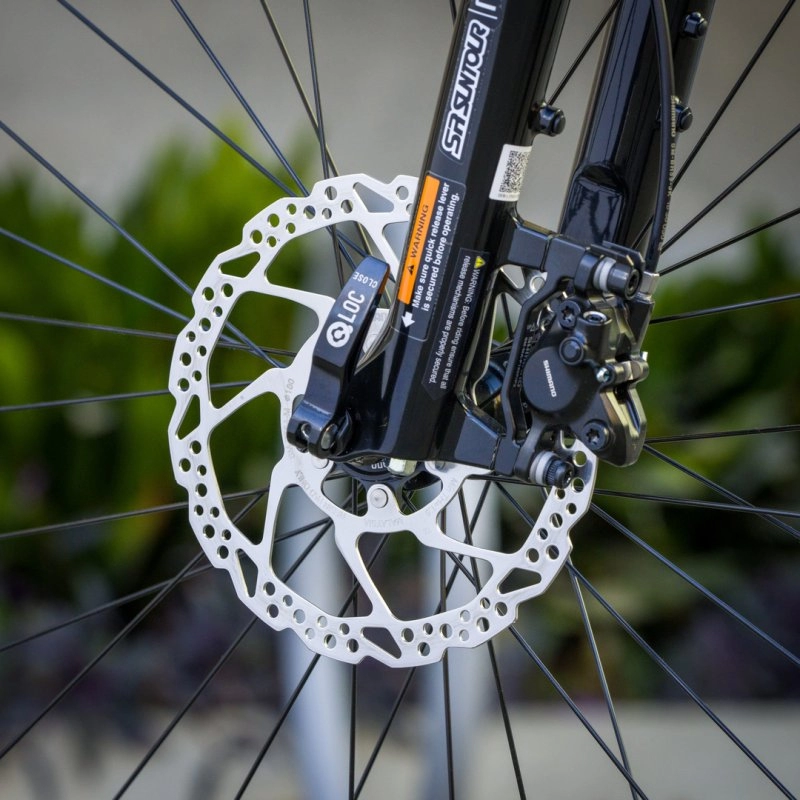

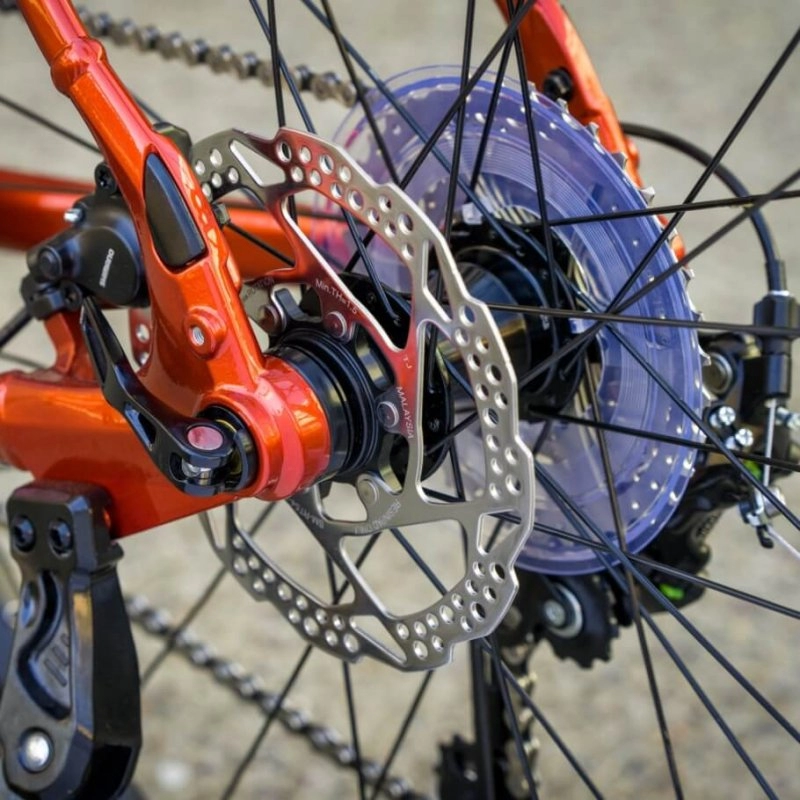

Hydraulic Disc Brakes

Hydraulic Disc Brakes

Hydraulic disc brakes and center lock rotors provide you with strong, dependable braking power in all conditions. Power when you want it, braking when you need it.

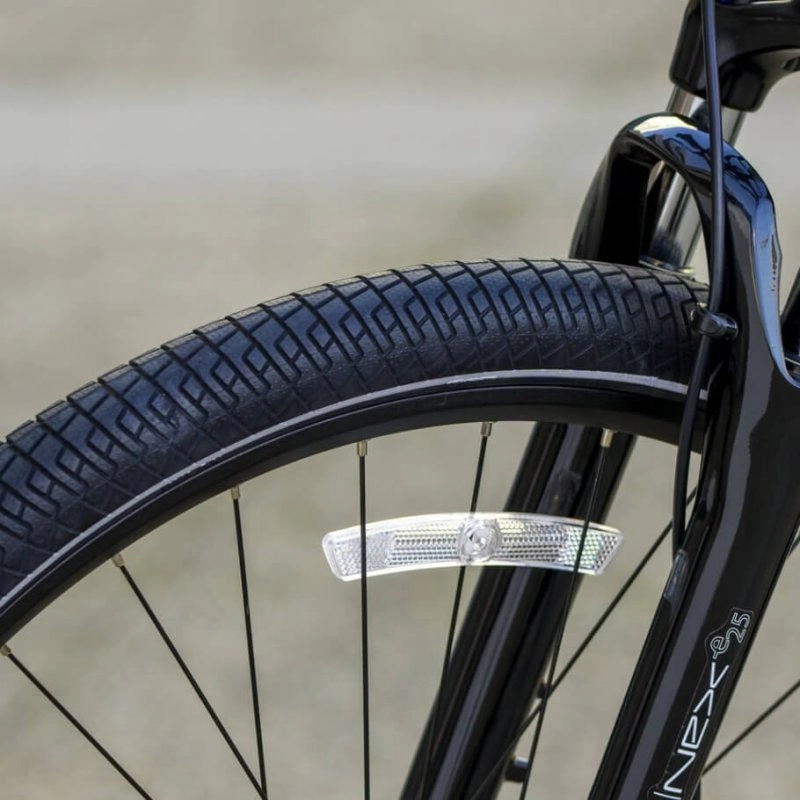

Large Volume Road and City Tires

Large Volume Road and City Tires

Large volume 2” wide tires means smoother pedaling over rough surfaces for a more comfortable ride feel. Now you can comfortably stay out longer or go even further.

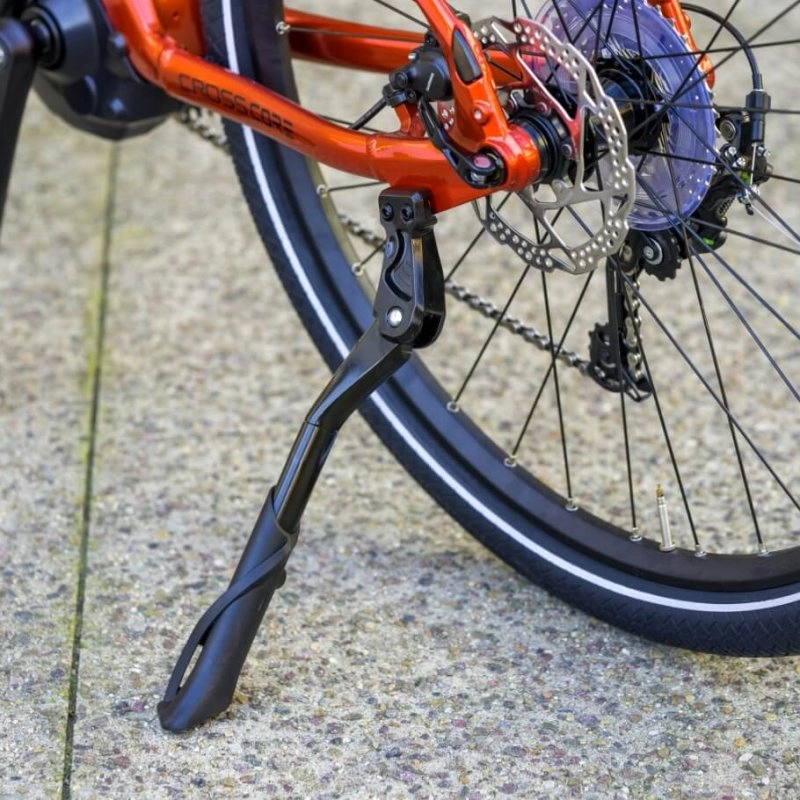

Easy Accessory Compatibility

Easy Accessory Compatibility

Equipped with an integrated kickstand for easy stowage and tabs built into the frame for options like fenders and rear rack. Take your things with you and make it a fun trip.

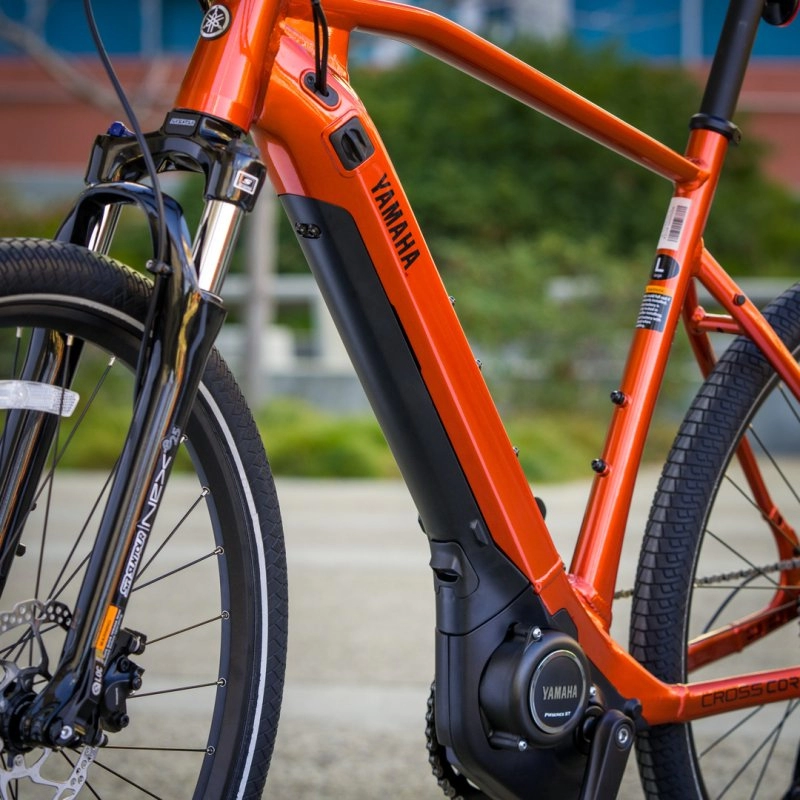

Yamaha 500Wh Battery

Yamaha 500Wh Battery

Yamaha’s proven 500 Watt-hour Lithium-ion battery encased inside the frame provides you with great function, reliability, and protection. When it’s time to plug-in the high-speed charger, you can choose to recharge with the battery pack in the frame or take it out for convenient storage.

Integrated Speed Sensor

Integrated Speed Sensor

Engineered into the rear hub and an exclusive design to Yamaha bicycles, our speed sensor immediately recognizes the slightest change in rolling speed and adjusts motor input to deliver a smooth and natural power assist feel.

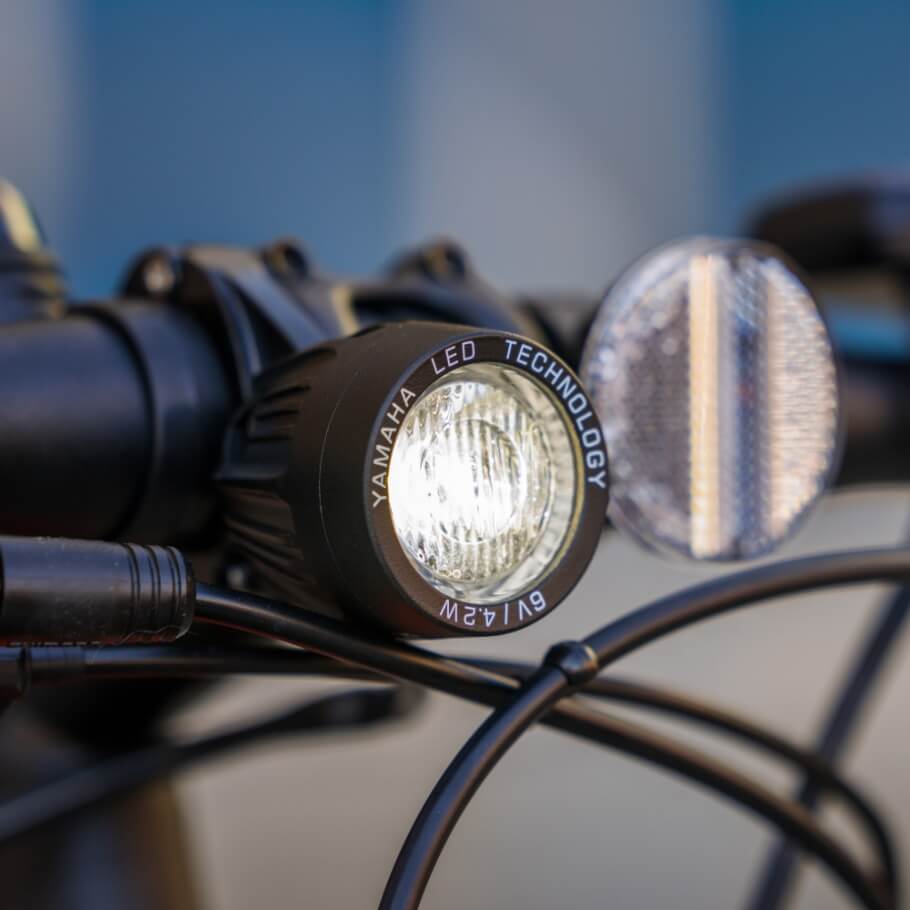

LED Headlight

LED Headlight

Equipped with a powerful LED headlight to help guide the way and easy on/off button access using the ergonomic multifunction display switch.

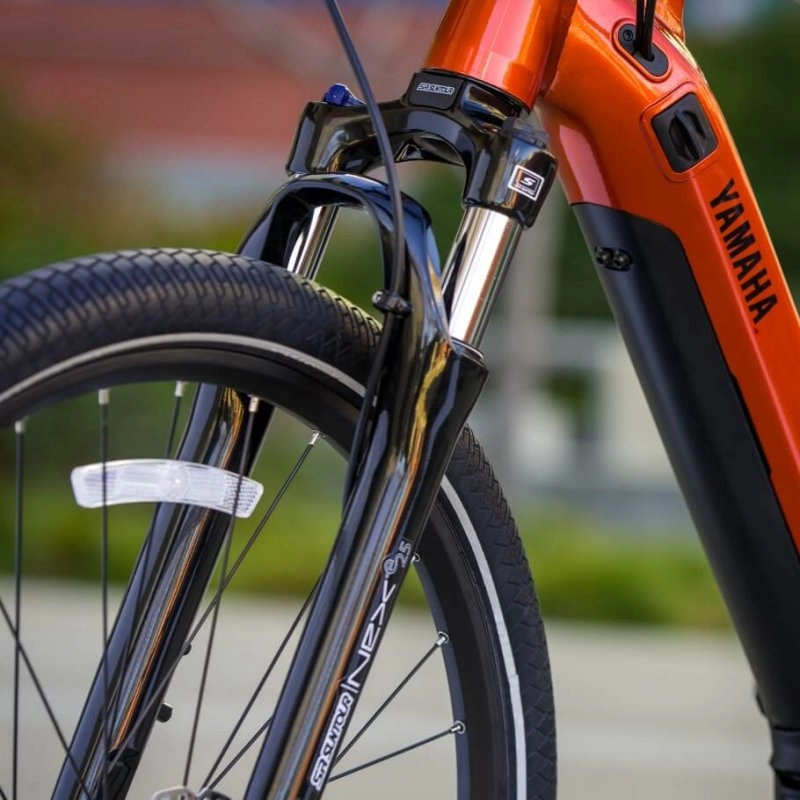

Comfort Focused Suspension

Comfort Focused Suspension

Bring the smooth and easy-to-adjust comfort of the SR SuntourNEX fork. Take the thud out of small bumps and rough roads with 2.5” of cushion without losing the quick handling characteristics of the optimized frame geometry.

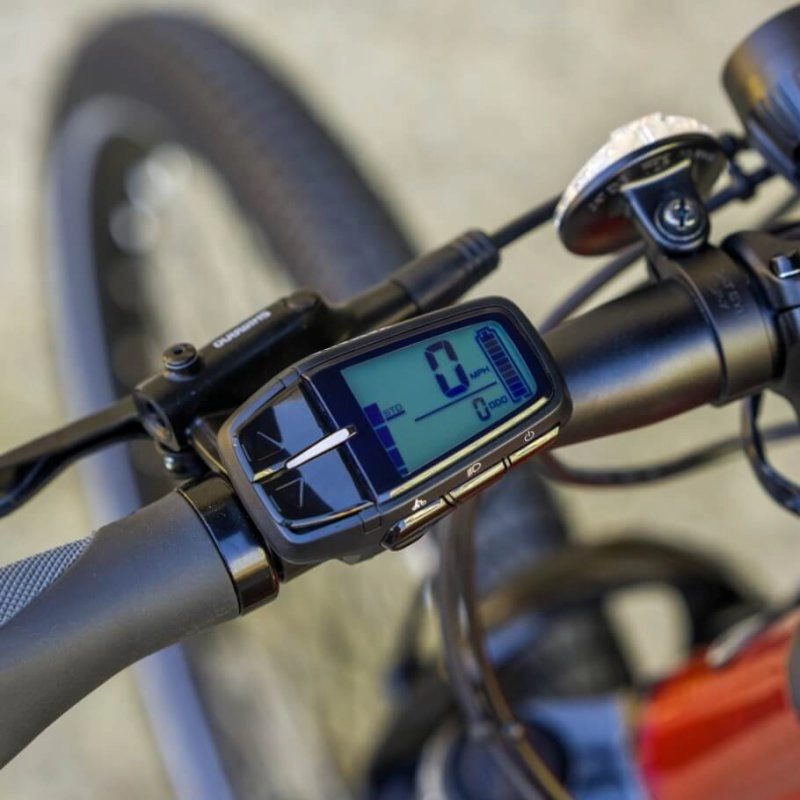

ALL-NEW Modes, Display, and Switch

ALL-NEW Modes, Display, and Switch

Utilizing our Quad Sensor System, the NEW Automatic Mode brings an added peace of mind to our 4-mode system for smooth and powerful assist. Our new display is designed for a wide range of uses, from city to trail riding and features a simple and easy to operate LCD display with speed and battery capacity functions.

  • ALL-NEW PWSeriesST

    With pedal addistpower up to 28mph, Yamaha's Quad Sensor System delivers assist in all conditions and offers a broad range of power assist modes that work great for many different styles of riding.

  • Hydraulic Disc Brakes

    Hydraulic disc brakes and center lock rotors provide you with strong, dependable braking power in all conditions. Power when you want it, braking when you need it.

  • Large Volume Road and City Tires

    Large volume 2” wide tires means smoother pedaling over rough surfaces for a more comfortable ride feel. Now you can comfortably stay out longer or go even further.

  • Easy Accessory Compatibility

    Equipped with an integrated kickstand for easy stowage and tabs built into the frame for options like fenders and rear rack. Take your things with you and make it a fun trip.

  • Yamaha 500Wh Battery

    Yamaha’s proven 500 Watt-hour Lithium-ion battery encased inside the frame provides you with great function, reliability, and protection. When it’s time to plug-in the high-speed charger, you can choose to recharge with the battery pack in the frame or take it out for convenient storage.

  • Integrated Speed Sensor

    Engineered into the rear hub and an exclusive design to Yamaha bicycles, our speed sensor immediately recognizes the slightest change in rolling speed and adjusts motor input to deliver a smooth and natural power assist feel.

  • LED Headlight

    Equipped with a powerful LED headlight to help guide the way and easy on/off button access using the ergonomic multifunction display switch.

  • Comfort Focused Suspension

    Bring the smooth and easy-to-adjust comfort of the SR SuntourNEX fork. Take the thud out of small bumps and rough roads with 2.5” of cushioned without losing the quick handling characteristics of the optimized frame geometry.

  • ALL-NEW Modes, Display, and Switch

    Utilizing our Quad Sensor System, the NEW Automatic Mode brings an added peace of mind to our existing 4-mode system for smooth and powerful assist. Our new display is designed for a wide range of uses, from city to trail riding and features a simple and easy to operate LCD display with speed and battery capacity functions.

Shop Yamaha Gear & Apparel

Shop Now



SPECIFICATIONS



SUGGESTED USE Casual Pavement Adventure
COLORS

Painted Desert  Painted Desert

Shiver White  Shiver White

Urban Sage  Urban Sage
SIZE 54cm (S), 57cm (M), 60cm (L)
MSRP $2,999
TOTAL WEIGHT

52.2 (S), 52.4 (M), 52.6 (L)
MOTOR

PWSeries ST
3-bolt Mount
Square taper spindle
Quad Sensor System with rear hub speed sensor
Weight: 7.71lb
Rated power: 250W (Nominal), 500W (Max)
Max torque: 70Nm
Max cadence support: 110rpm
Max speed support: 28mph
Support modes: AUTO, ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY Yamaha Lithium Ion with charge-life indicator and self-diagnosis display
Side-exiting dock station with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME Yamaha Hydroformed Aluminum
Integrated battery
Water bottle boss
Tapered Headtube
Internal shift/brake hose routing
Rack/Fender compatible
FORK

SR Suntour NEX E25. 63mm Travel

2x100mm Thru-Axle
HEADSET Integrated headset with 30mm headset spacers
STEM Yamaha Alloy 4-bolt faceplate
31.8 diameter
80mm length (53cm, 55cm)
100mm length (58cm)
HANDLEBAR Alloy flat bar zero degree rise
31.8mm diameter
640mm width
GRIPS/TAPE Two-tone ergonomic locking
SEATPOST/SADDLE CLAMP Alloy 30.9 x 295mm (S), 345mm (M L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR Alloy 2-bolt 35.0mm
SADDLE Yamaha Urban Comfort Cro-Mo Rail
SHIFTERS Shimano M2010 9-speed
Gear selection window
FRONT DERAILLEUR Shimano Sora (2 x 9) Braze-on
REAR DERAILLEUR Shimano M3100 SGS
CRANKARM Square taper
165mm (S)
170mm (M L)
CHAIN KMC e11 118 links
CASSETTE SHIMANO HG400 9-speed
11-13-15-17-20-23-26-30-36T
CHAINRING(S) SAMOX 44t
BRAKES/ROTORS

Hydraulic disc brake. 2-Finger Lever
Shimano SM RT21 Rotors, 180mm front, 160mm rear
RIMS

275” 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke
SPOKES SUS304 14G
SPOKE NIPPLES Brass
HUBS Front: 12x100mm Quick-Release Thru-Axle (QRTA)
Rear: 12x142mm QRTA with integrated speed sensor
TIRES/TUBES CST C1996 27.5x2.0”
ACCESSORIES Included Kickstand
Yamaha battery charger
Bell
LED Headlight
WARRANTY 5-Year on Frame, Drive Unit, Battery



Specifications are subject to change without notice

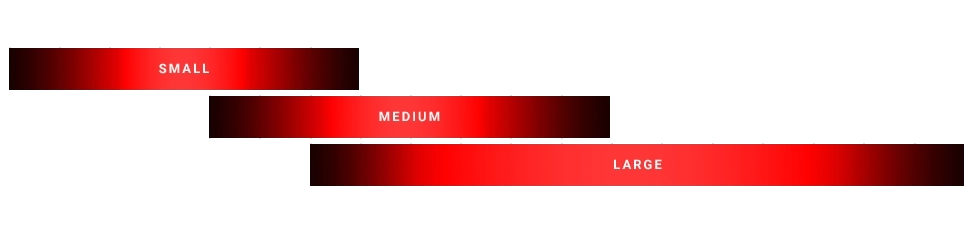

Sizing & Fit

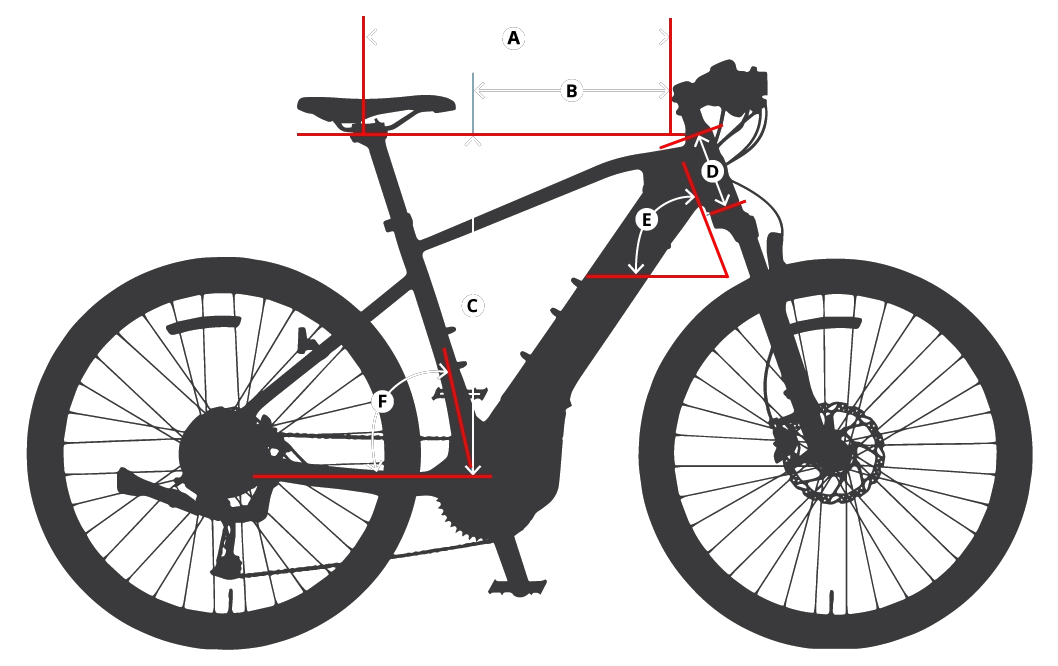

GEOMETRY


S

A TOP TUBE (mm) 539
B REACH LENGTH (mm) 355
C STACK HEIGHT (mm) 603
D HEAD TUBE LENGTH (mm) 120
E HEAD TUBE ANGLE 69.8°
F SEAT TUBE ANGLE 73.1°
  STANDOVER HEIGHT (mm) 777
  HANDLEBAR WIDTH (mm)  640
  CRANK ARM LENGTH (mm)  165
  SEAT POST LENGTH (mm)  295
  STEM LENGTH (mm)  80
  BB DROP (mm) 63
  REAR CENTER (mm) 465
  WHEELBASE (mm) 1061
  SEAT TUBE LENGTH (mm) 430

M

A TOP TUBE 569
B REACH LENGTH 370
C STACK HEIGHT 614
D HEAD TUBE LENGTH 130
G HEAD TUBE ANGLE 70.5°
F SEAT TUBE ANGLE 72°
  STANDOVER HEIGHT 814
  HANDLEBAR WIDTH  640
  CRANK ARM LENGTH  170
  SEAT POST LENGTH  345
  STEM LENGTH  50
  BB DROP 63
  REAR CENTER 465
  WHEELBASE 1071
  SEAT TUBE LENGTH 490

L

A TOP TUBE 599
B REACH LENGTH 390
C STACK HEIGHT 626
D HEAD TUBE LENGTH 140
E HEAD TUBE ANGLE 71.1°
F SEAT TUBE ANGLE 71.6°
  STANDOVER HEIGHT 847
  HANDLEBAR WIDTH  640
  CRANK ARM LENGTH  170
  SEAT POST LENGTH  345
  STEM LENGTH  80
  BB DROP 63
  REAR CENTER 465
  WHEELBASE 1090
  SEAT TUBE LENGTH 552
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 539 569 599
B REACH LENGTH (mm) 355 370 390
C STACK HEIGHT (mm) 603 614 626
D HEAD TUBE LENGTH (mm) 120 130 140
E HEAD TUBE ANGLE 69.8° 70.5° 71.1°
F SEAT TUBE ANGLE 73.1° 72° 71.6°
  STANDOVER HEIGHT (mm) 777 814 847
  HANDLEBAR WIDTH (mm)  640  640  640
  CRANK ARM LENGTH (mm)  165  170  170
  SEAT POST LENGTH (mm)  295  345  345
  STEM LENGTH (mm)  80  80  80
  BB DROP (mm) 63 63 63
  REAR CENTER (mm) 465 465 465
  WHEELBASE (mm) 1061 1071 1090
  SEAT TUBE LENGTH (mm) 430 490 552



GEOMETRY & SIZING


S

A TOP TUBE (mm) 539
B REACH LENGTH (mm) 355
C STACK HEIGHT (mm) 603
D HEAD TUBE LENGTH (mm) 120
E HEAD TUBE ANGLE 69.8°
F SEAT TUBE ANGLE 73.1°
  STANDOVER HEIGHT (mm) 777
  HANDLEBAR WIDTH (mm)  640
  CRANK ARM LENGTH (mm)  165
  SEAT POST LENGTH (mm)  295
  STEM LENGTH (mm)  80
  BB DROP (mm) 63
  REAR CENTER (mm) 465
  WHEELBASE (mm) 1061
  SEAT TUBE LENGTH (mm) 430

M

A TOP TUBE 569
B REACH LENGTH 370
C STACK HEIGHT 614
D HEAD TUBE LENGTH 130
G HEAD TUBE ANGLE 70.5°
F SEAT TUBE ANGLE 72°
  STANDOVER HEIGHT 814
  HANDLEBAR WIDTH  640
  CRANK ARM LENGTH  170
  SEAT POST LENGTH  345
  STEM LENGTH  50
  BB DROP 63
  REAR CENTER 465
  WHEELBASE 1071
  SEAT TUBE LENGTH 490

L

A TOP TUBE 599
B REACH LENGTH 390
C STACK HEIGHT 626
D HEAD TUBE LENGTH 140
E HEAD TUBE ANGLE 71.1°
F SEAT TUBE ANGLE 71.6°
  STANDOVER HEIGHT 847
  HANDLEBAR WIDTH  640
  CRANK ARM LENGTH  170
  SEAT POST LENGTH  345
  STEM LENGTH  80
  BB DROP 63
  REAR CENTER 465
  WHEELBASE 1090
  SEAT TUBE LENGTH 552
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 539 569 599
B REACH LENGTH (mm) 355 370 390
C STACK HEIGHT (mm) 603 614 626
D HEAD TUBE LENGTH (mm) 120 130 140
E HEAD TUBE ANGLE 69.8° 70.5° 71.1°
F SEAT TUBE ANGLE 73.1° 72° 71.6°
  STANDOVER HEIGHT (mm) 777 814 847
  HANDLEBAR WIDTH (mm)  640  640  640
  CRANK ARM LENGTH (mm)  165  170  170
  SEAT POST LENGTH (mm)  295  345  345
  STEM LENGTH (mm)  80  80  80
  BB DROP (mm) 63 63 63
  REAR CENTER (mm) 465 465 465
  WHEELBASE (mm) 1061 1071 1090
  SEAT TUBE LENGTH (mm) 430 490 552
