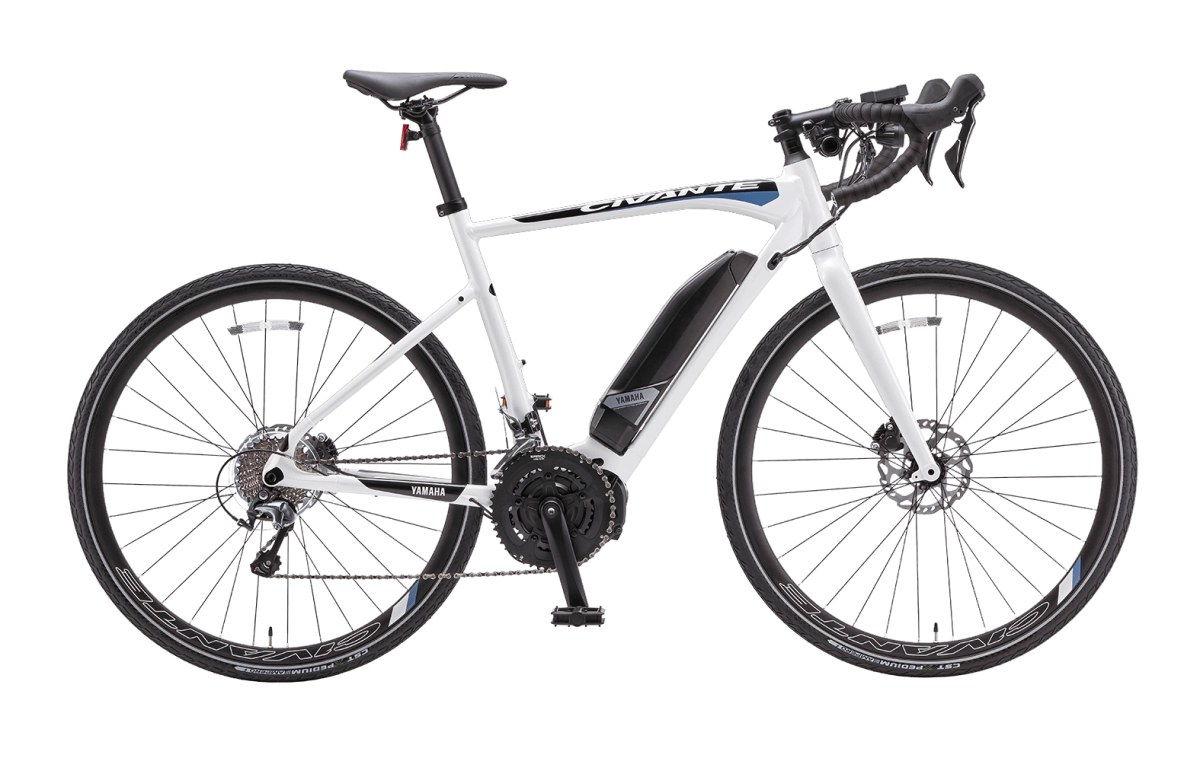

Integrated technology. Great comfort. Fantastic ride quality. With pedal assist up to 28mph and geometry that is comfortable at higher speeds, our proprietary drive unit feels natural and smooth so that you can enjoy the ride and get there faster. You might be big on social media, but you’ll have even more followers when you’re riding your Civante.

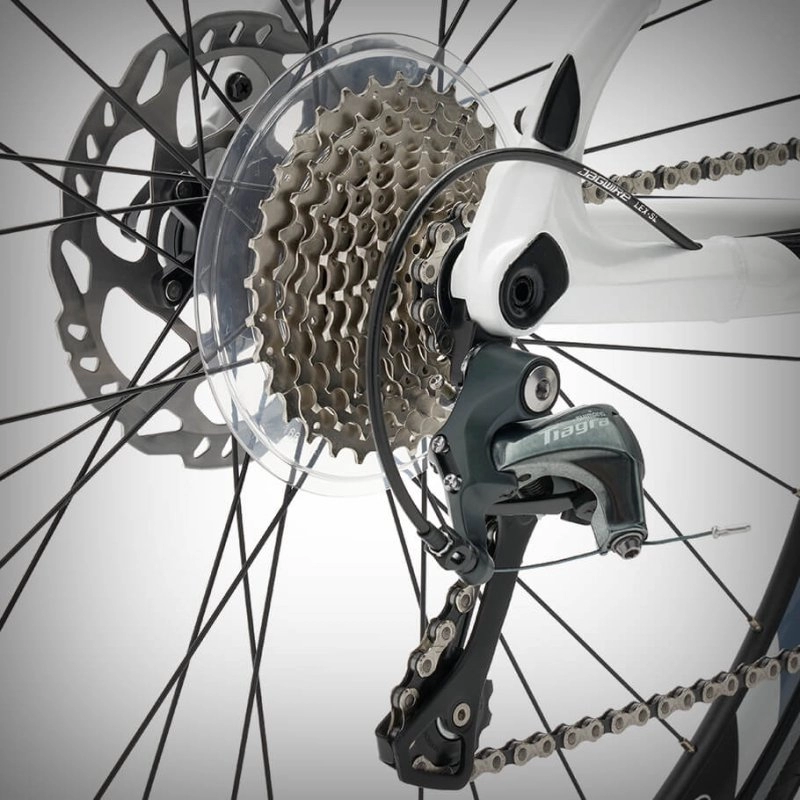

Shimano’s durable 10-speed Tiagra groupset handles Civante's shifting duties. The double chainring (50/34T) ensures optimum gear range to conquer any climb your commute presents with ease.

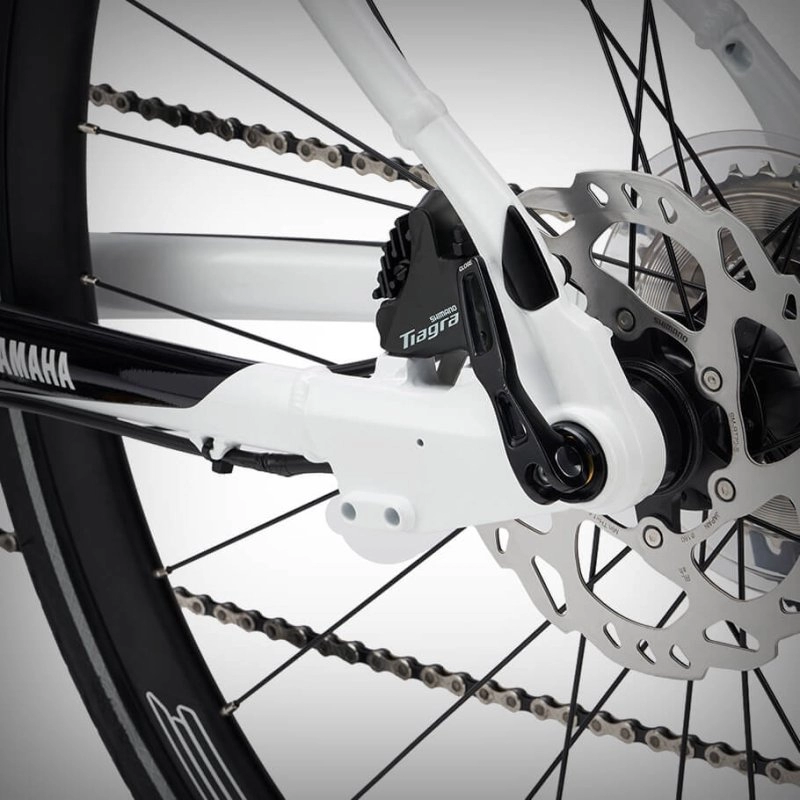

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

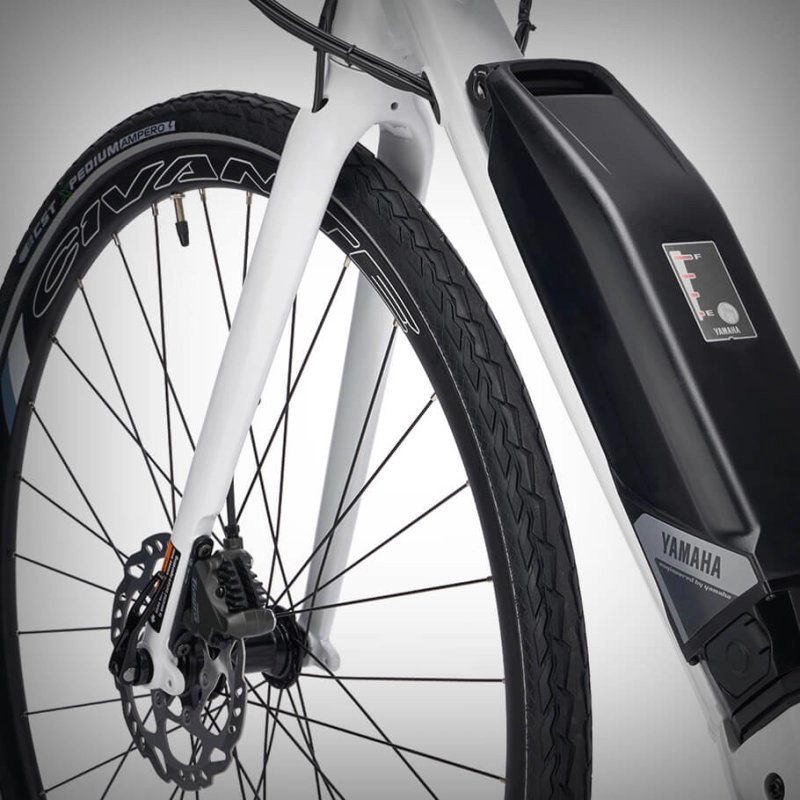

Reliable, long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off the Civante using the Yamaha high speed charger which quickly charges from 0-80% in about one-hour.

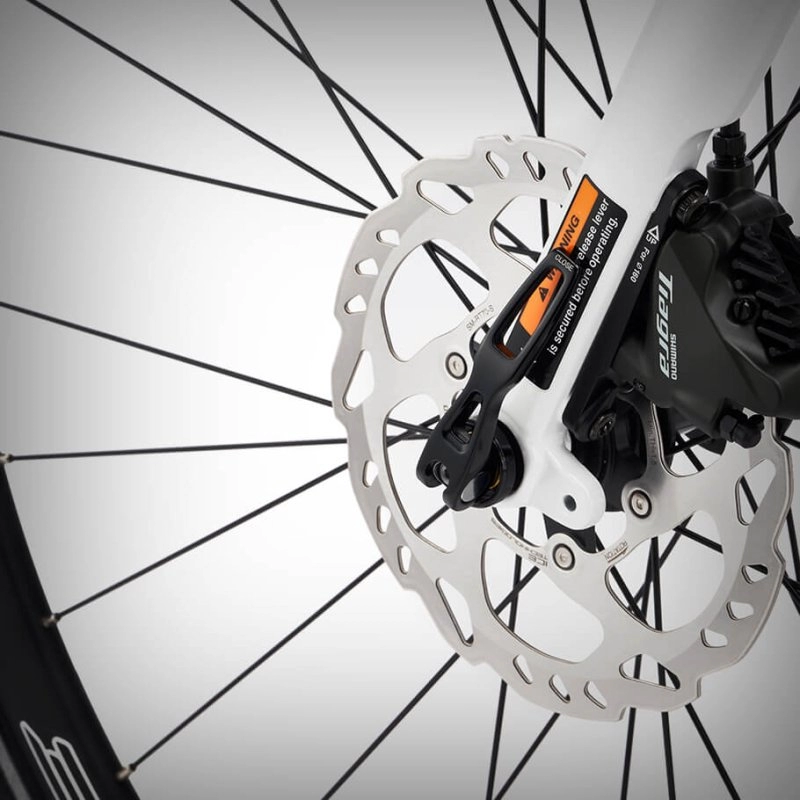

Shimano Tiagra hydraulic disc brakes with 160mm center lock rotors ensure strong, confident braking in all conditions. The Civante’s fork also has mounting tabs for easy installation of Yamaha’s accessory front fender.

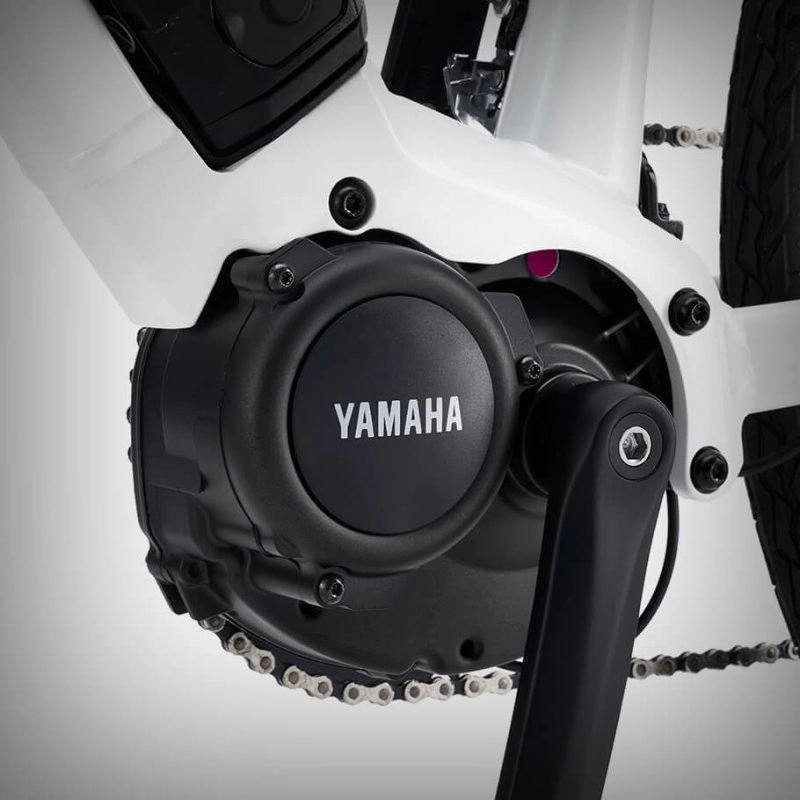

Our center mount drive unit provides a low center of gravity for exceptional handling. With four levels of powerful and smooth assist up to 28 MPH the Civante delivers a ride experience that feels natural and inspires confidence.

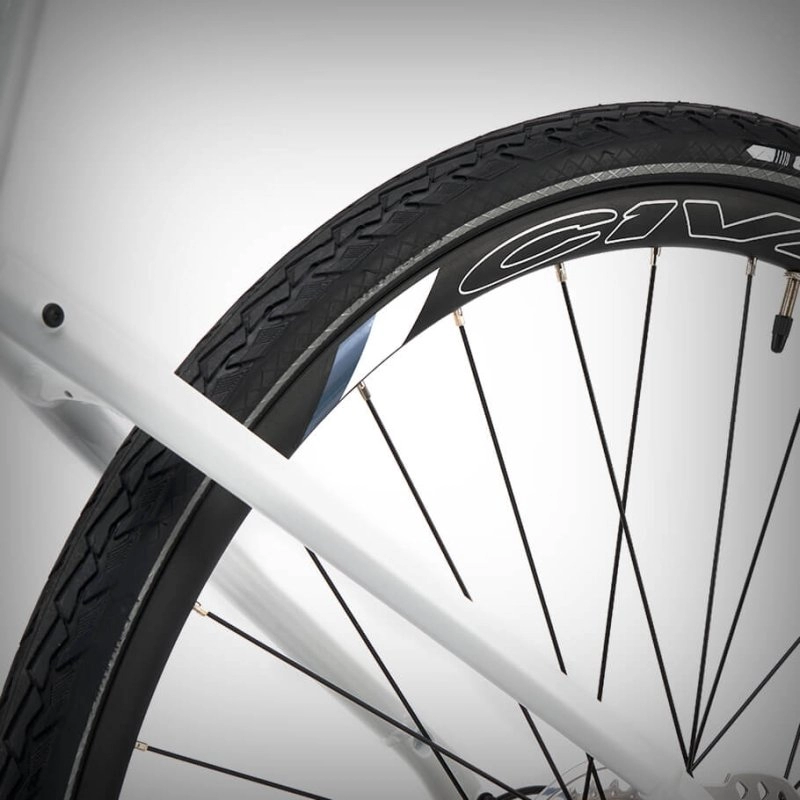

Want to build the ultimate commuter? Clean and hidden away, the built-in bosses on the Civante are there to accept Yamaha’s accessory rear rack for those times when you need to take your gear with you.

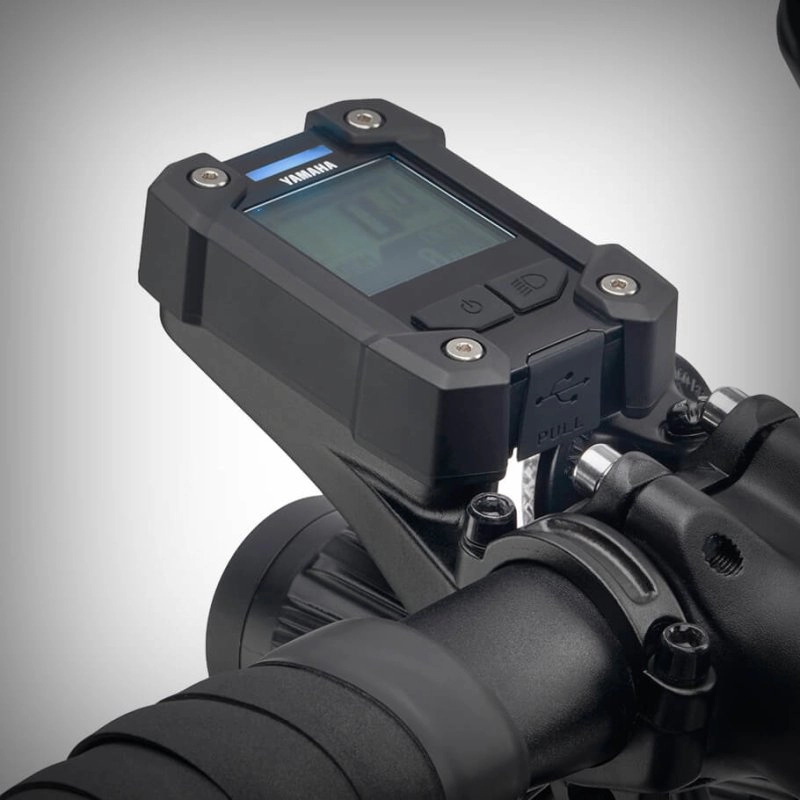

Charge your electronics on the go with USB Micro-B power connectivity.

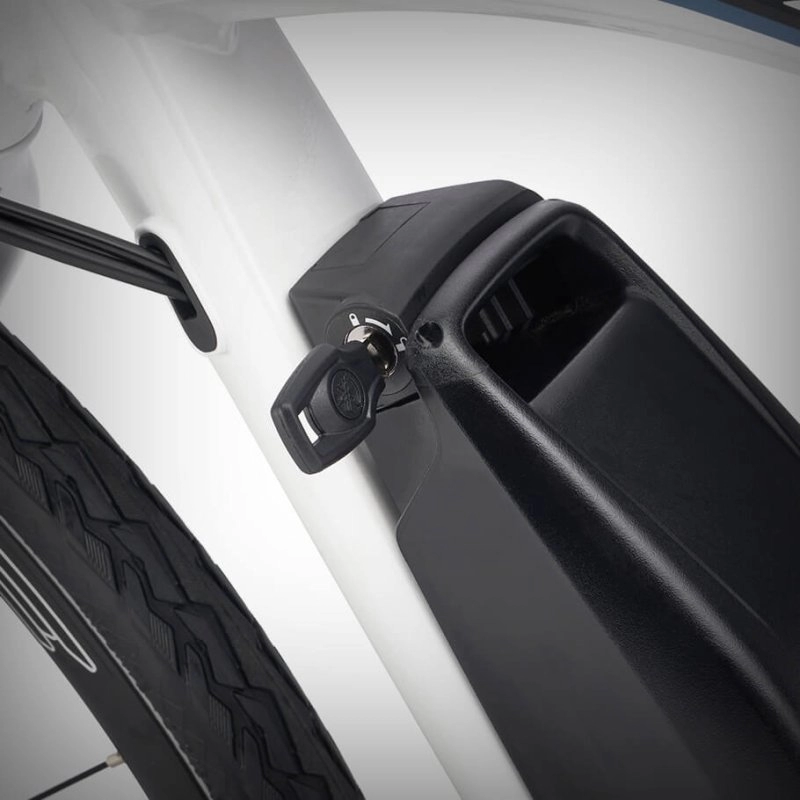

Incorporating a side exiting battery allows frame designers to decrease stand over height for increased control without sacrificing the ability to quickly remove and charge the battery. Three keys included.

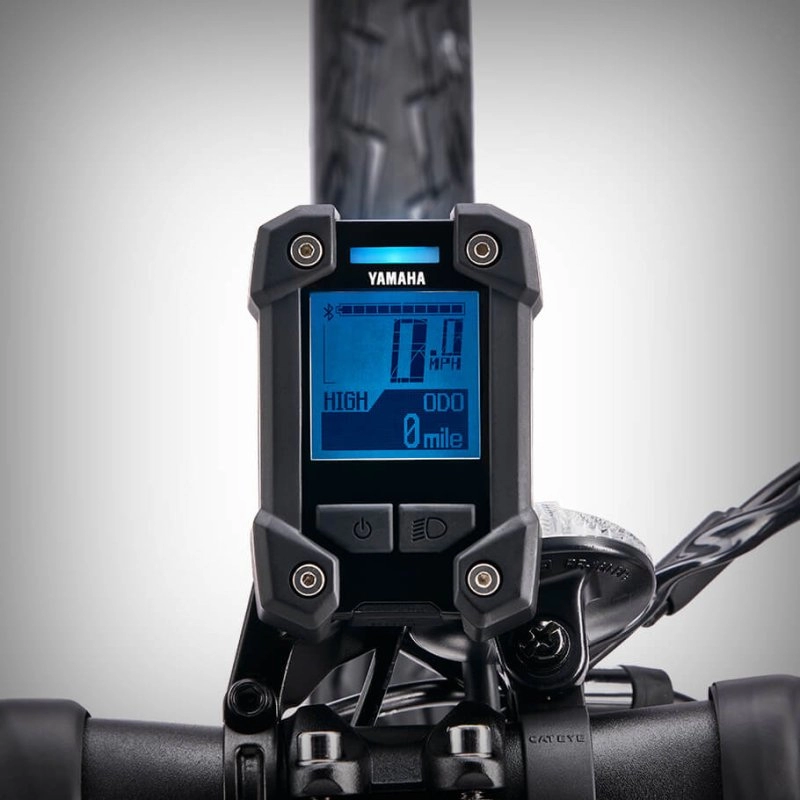

Large ergonomic control switches and easy to read LCD multi-function display keep you connected to your ride. The main LCD interface allows you to access BlueTooth connectivity and to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch.
SUGGESTED USE
• Road, Urban Bike Path
COLORS
• Polar White / Suede Gray Polar White

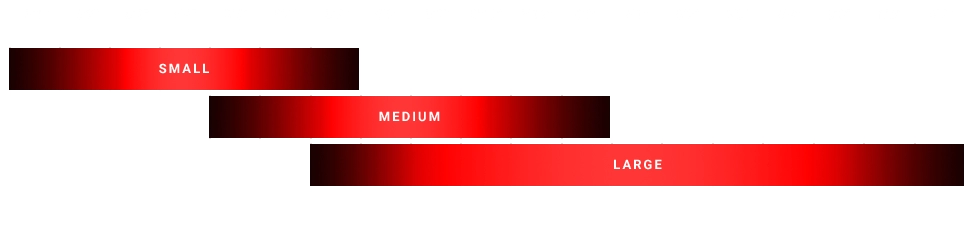

SIZE
• 53cm (S), 55cm (M), 58cm (L)
MSRP
• 3399
TOTAL WEIGHT
• 43lb (M)
MOTOR
• PWSeries SE
• Center mount
• Square taper spindle
• Triple Sensor System with integrated speed sensor as part of rear hub
• Weight: 7.71lb
• Rated power: 250W (Nominal), 500W (Max)
• Max torque: 70Nm
• Max cadence support: 110rpm
• Max speed support: 28mph
• Support modes: ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER
• Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-col
•
• Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY
• Yamaha 500Wh with Charge-life indicator and Self-diagnosis display.
• Side-exiting dock station with anti-vibration mounting plate
• Weight 6.61lb
• 500Wh 36V
• 4-hour charge time
FRAME
• Yamaha hydroformed and butted alluminum tubing
• Internal cable/housing routing
• Accessory mount
• Fender and Rack compatible
• 3-bolt motor mount
• 12 x 142 rear spacing
• Integrated speed sensor harness
FORK
• Alloy, 12mm thru-axle, fender compatible, internal cable housing routed
• 1 1/8in steerer
HEADSET
• Integrated headset with 30mm headset spacers
STEM
• Yamaha Alloy 4-bolt faceplate
• 31.8 diameter
• 80mm length (53cm, 55cm)
• 100mm length (58cm)
HANDLEBAR
• Alloy drop bar
• 31.8mm diameter
• 40cm width (53cm)
• 42cm (55cm and 58cm)
GRIPS/TAPE
• Padded cork tape
SEATPOST/SADDLE CLAMP
• Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR
• Alloy 2-bolt 35.0mm
SADDLE
• Yamaha Road Plus Cro-Mo Rail
RIMS
• 700c Alloy aero rim 27mm depth
• Rim width: 22.2mm (OUTSIDE) 17mm (INSIDE)
SPOKES
• Spokes SUS304
SPOKE NIPPLES
• Brass
HUBS
• Anodized
• Centerlock brake mount
• front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES
• CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use
• PV Tube
SHIFTERS
• Shimano Tiagra Hydraulic Disc Brake Dual Control Lever 2x10
FRONT DERAILLEUR
• Shimano Tiagra (2 x 10) Braze-on
REAR DERAILLEUR
• Shimano Tiagra GS 10-Speed
CRANKARM
• Square taper
• 165mm (53cm)
• 170mm (55cm and 58cm)
CHAIN
• KMC e10 Sport
CASSETTE
• Shimano 11/32T
CHAINRING(S)
• 50/34T E-Ring 110 BCD
BRAKES/ROTORS
• Shimano Tiagra Hydraulic Disc 160mm SM-RT68 Centerlock Rotor
ACCESSORIES
• Yamaha keys
• Yamaha battery charger
• LED Headlamp
• Bell
• 1-piece accessory mount for computer, control switch, bell, headlamp
WARRANTY
• 5-Year on Frame, Motor, Battery* Component Manufacturers warranty** is supported by Yamaha
Specifications are subject to change without notice.

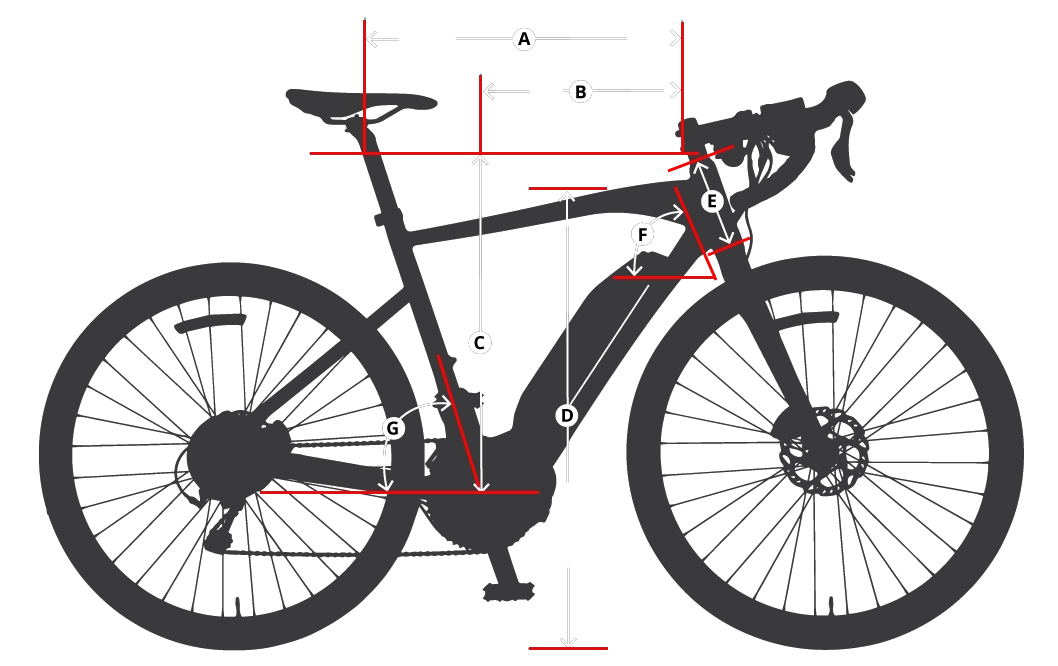

| A | TOP TUBE (mm) | 530 |
| B | REACH LENGTH (mm) | 373 |
| C | STACK HEIGHT (mm) | 548 |
| D | STANDOVER HEIGHT (mm) | 725 |
| E | HEAD TUBE LENGTH (mm) | 130 |
| F | HEAD TUBE ANGLE | 71 |
| G | SEAT TUBE ANGLE | 74 |
| HANDLEBAR WIDTH (mm) | 400 | |
| CRANK ARM LENGTH (mm) | 165 | |
| SEAT POST LENGTH (mm) | 260 | |
| STEM LENGTH (mm) | 80 | |
| BB DROP (mm) | 61 | |
| REAR CENTER (mm) | 455 | |
| WHEELBASE (mm) | 1039 | |
| SEAT TUBE LENGTH (mm) | 430 |
| A | TOP TUBE (mm) | 550 |
| B | REACH LENGTH (mm) | 392 |
| C | STACK HEIGHT (mm) | 555 |
| D | STANDOVER HEIGHT (mm) | 751 |
| E | HEAD TUBE LENGTH (mm) | 135 |
| F | HEAD TUBE ANGLE | 72 |
| G | SEAT TUBE ANGLE | 74 |
| HANDLEBAR WIDTH (mm) | 420 | |
| CRANK ARM LENGTH (mm) | 170 | |
| SEAT POST LENGTH (mm) | 315 | |
| STEM LENGTH (mm) | 80 | |
| BB DROP (mm) | 61 | |
| REAR CENTER (mm) | 455 | |
| WHEELBASE (mm) | 1051 | |
| SEAT TUBE LENGTH (mm) | 463 |
| A | TOP TUBE (mm) | 580 |
| B | REACH LENGTH (mm) | 405 |
| C | STACK HEIGHT (mm) | 572 |
| D | STANDOVER HEIGHT (mm) | 797 |
| E | HEAD TUBE LENGTH (mm) | 150 |
| F | HEAD TUBE ANGLE | 73 |
| G | SEAT TUBE ANGLE | 73 |
| HANDLEBAR WIDTH (mm) | 420 | |
| CRANK ARM LENGTH (mm) | 170 | |
| SEAT POST LENGTH (mm) | 350 | |
| STEM LENGTH (mm) | 100 | |
| BB DROP (mm) | 61 | |
| REAR CENTER (mm) | 455 | |
| WHEELBASE (mm) | 1064 | |
| SEAT TUBE LENGTH (mm) | 530 |
