Overview

Find a Dealer
WABASH RT W.png

The world might not revolve around us, but it can revolve under us.

MSRP

4,199

Color

Find a Retailer

Start Your Journey

WABASH RT GALLERY

Unparalleled adventure and versatility

WabashRT Top-Middle-Gallery-Image.jpg
WabashRT Top-Right-Gallery-Image.jpg
WabashRT Bottom-Left-Gallery-Image.jpg
WabshRT Bottom-Middle-Gallery-Image.jpg
WabashRT Bottom-Right-Gallery-Image.jpg


WABASH RT FEATURES

Not only made for what you do, but for who you are.

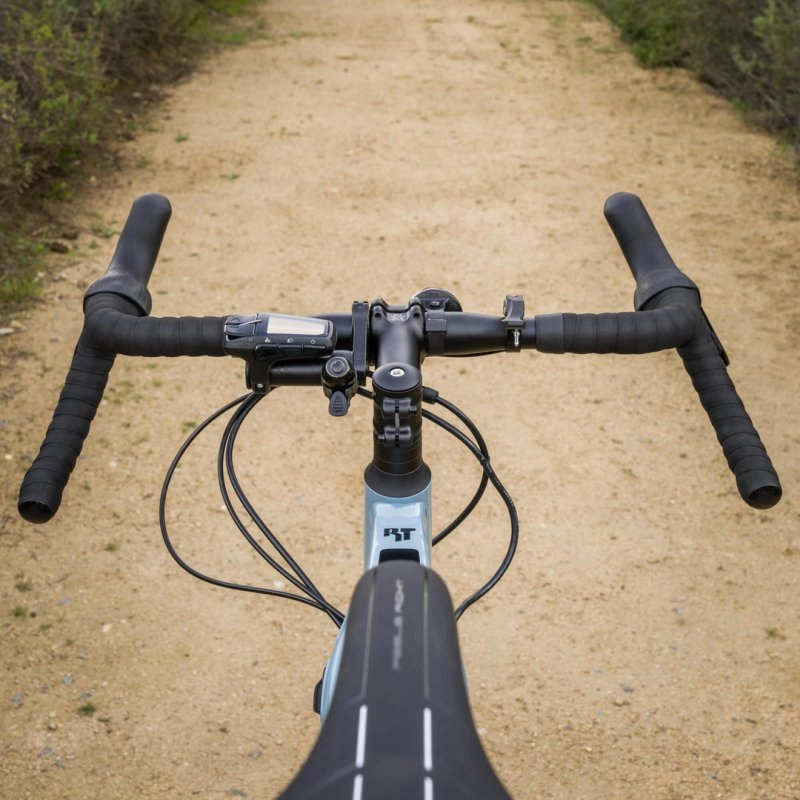

Gravel Specific Handlebar

Gravel Specific Handlebar

Super comfortable ergonomics and exceptional strength for stability, our wide-flare handlebar is designed with ample space to fit larger-size handlebar bags for those long-haul rides.

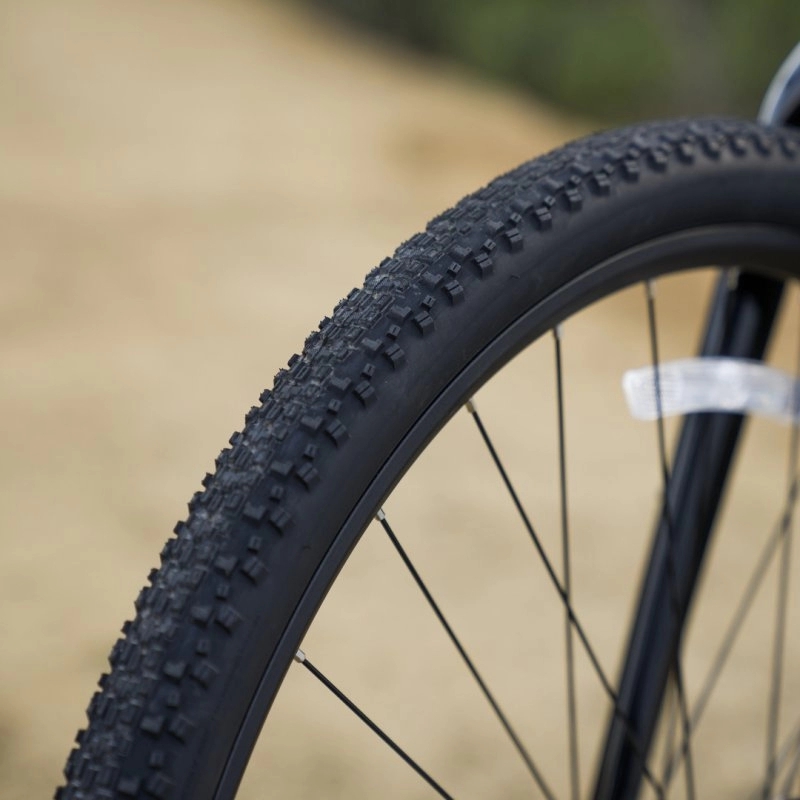

Dual Compound Tires

Dual Compound Tires

Puncture protection technology, tightly packed center-knobs and wider spaced side-knobs combine to give you excellent rolling efficiency and cornering control on pavement or hard-packed earth.

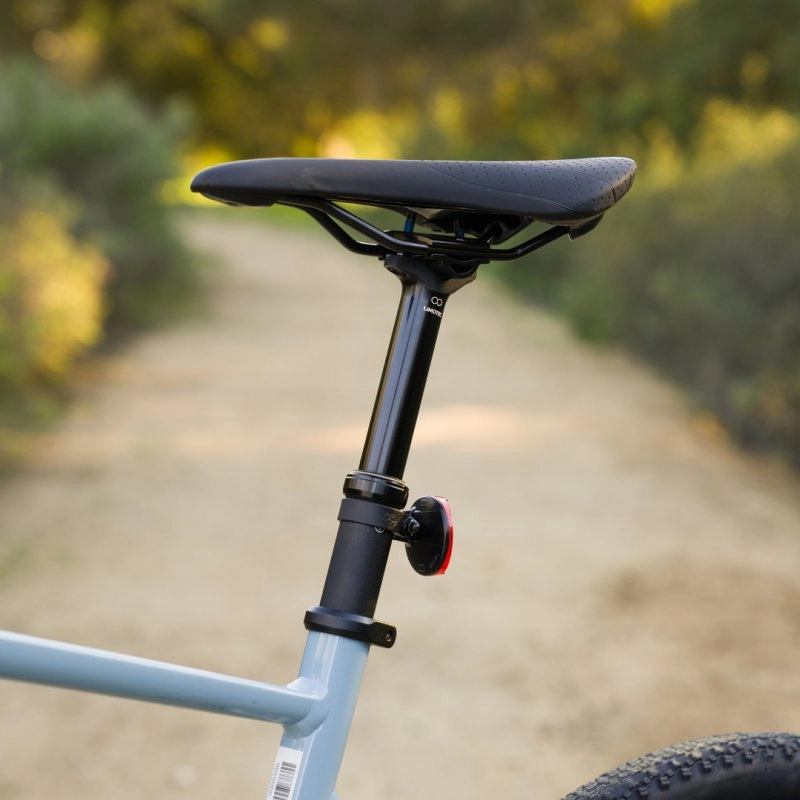

Dropper Post

Dropper Post

Often noted as one of the best upgrades you can make to your gravel bike, we've included it as a standard accessory to expand your capabilities on or off-road. If you're looking to explore further off the beaten path, this will be a game changer for you.

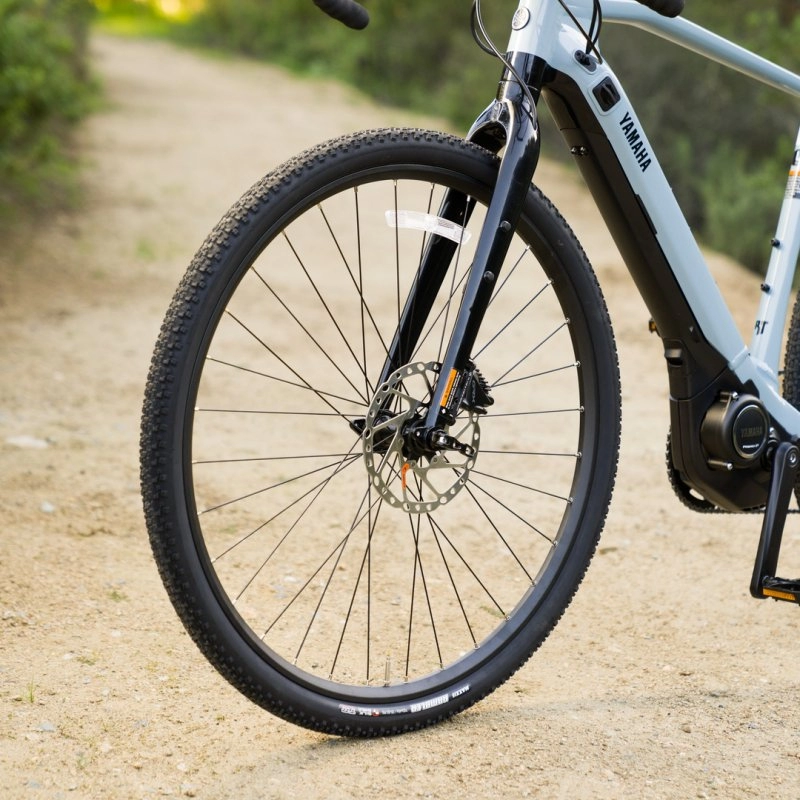

Fork Rack and Fender Mounts

Fork Rack and Fender Mounts

Suitable for many front rack and fender options, our fork design gives you the ability to customize your load carry capacity for pretty much anything and still has enough space for fenders to protect from harsh riding conditions.

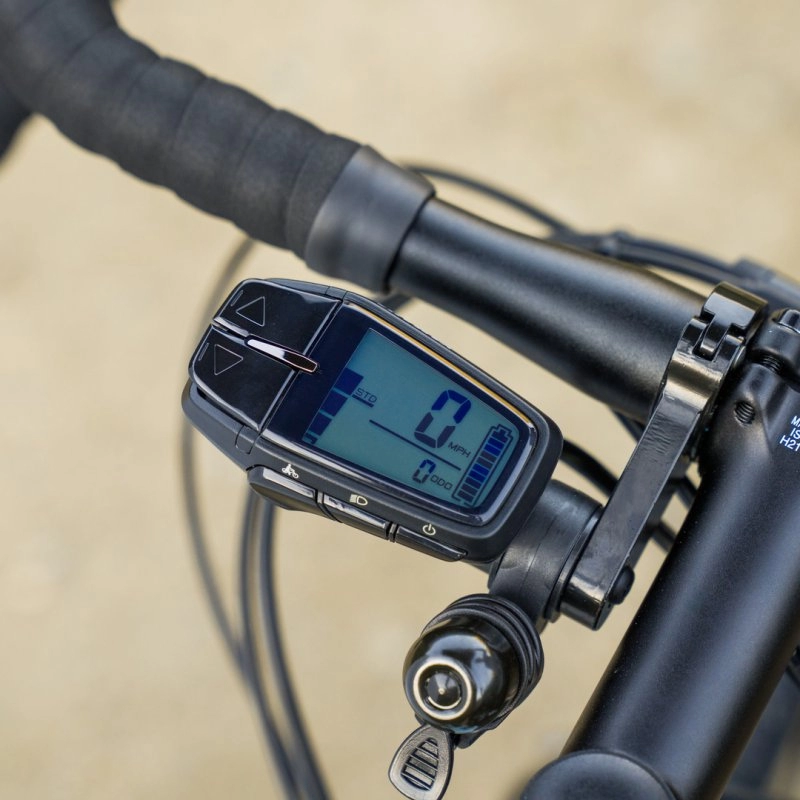

ALL-NEW Modes, Display, and Switch

ALL-NEW Modes, Display, and Switch

NEW Automatic Mode with 4 manual modes of smooth and powerful assist. The Display A is designed for a wide range of uses and features a simple and easy to operate display with speed and battery capacity functions.

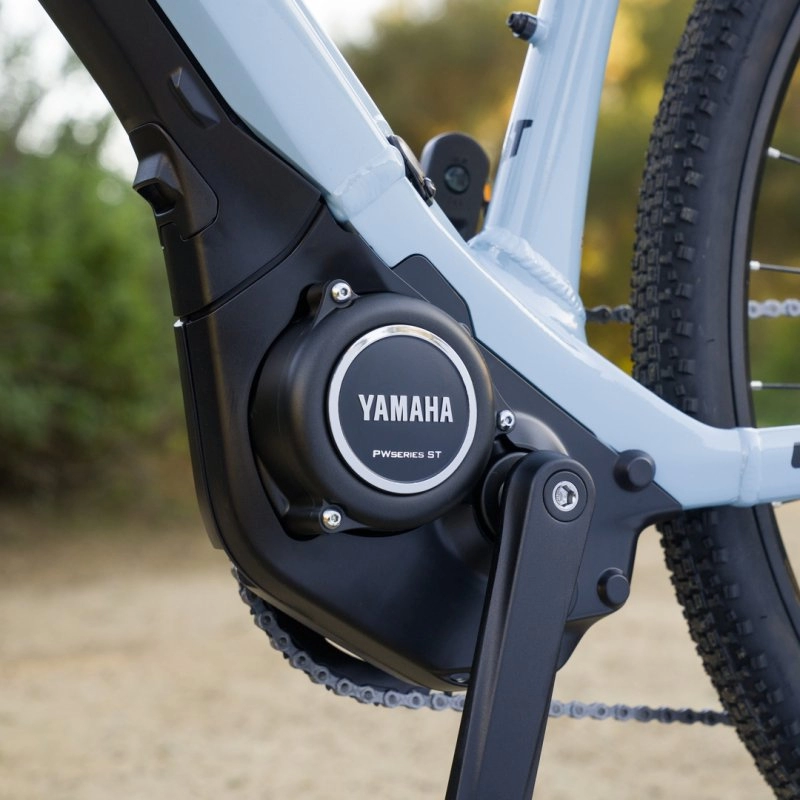

ALL-NEW PWSeries ST

ALL-NEW PWSeries ST

Our Quad Sensor System with Automatic Mode combines power with stable control. Powerful enough for the steepest climbs and controllable balance and traction for exciting descents.

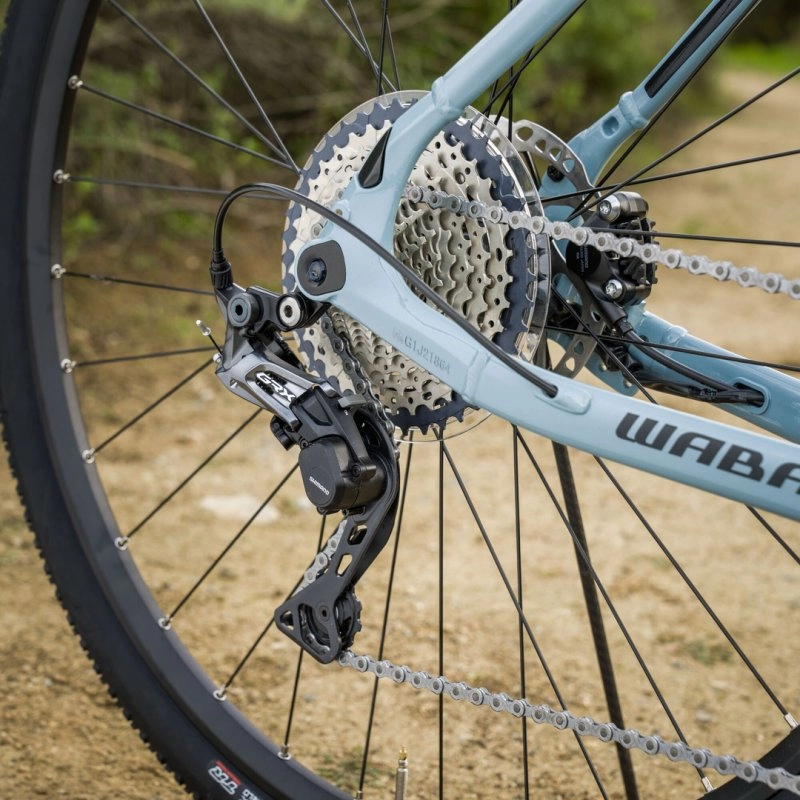

SHIMANO GRX

SHIMANO GRX

Dedicated design for gravel riding with anti-slip brake levers and a rear derailleur originally introduced for aggressive MTB which reduces chain slap, improves chain retention and minimizes the risk of hitting rocks over rough terrain.

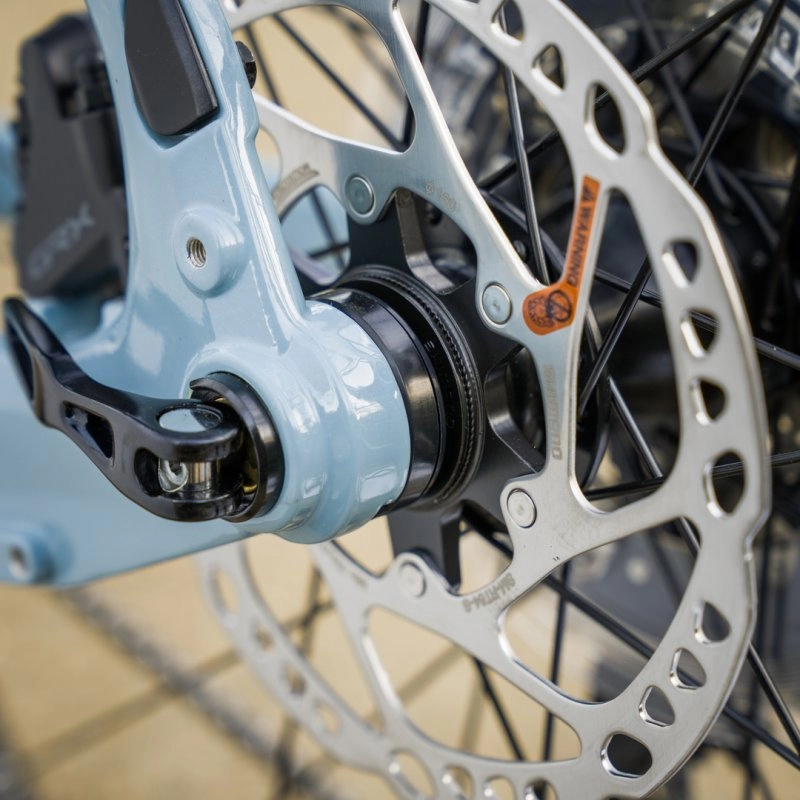

Integrated Hub Speed Sensor

Integrated Hub Speed Sensor

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

Yamaha 500Wh Battery

Yamaha 500Wh Battery

Yamaha’s proven 500 Watt-hour Lithium-ion battery pack technology is encased inside the frame with easy access to remove for charging off the bike and provides you with reliable & long-lasting energy to power your rides.

  • Gravel Specific Handlebar

    Super comfortable ergonomics and exceptional strength for stability, our wide-flare handlebar is designed with ample space to fit larger-size handlebar bags for those long-haul rides.

  • Dual Compound Tires

    Puncture protection technology, tightly packed center-knobs and wider spaced side-knobs combine to give you excellent rolling efficiency and cornering control on pavement or hard-packed earth.

  • Dropper Post

    Often noted as one of the best upgrades you can make to your gravel bike, we've included it as a standard accessory to expand your capabilities on or off-road. If you're looking to explore further off the beaten path, this will be a game changer for you.

  • Fork Rack and Fender Mounts

    Suitable for many front rack and fender options, our fork design gives you the ability to customize your load carry capacity for pretty much anything and still has enough space for fenders to protect from harsh riding conditions.

  • ALL-NEW Modes, Display, and Switch

    NEW Automatic Mode with 4 manual modes of smooth and powerful assist. The Display A is designed for a wide range of uses and features a simple and easy to operate display with speed and battery capacity functions.

  • ALL-NEW PWSeries ST

    Our Quad Sensor System with Automatic Mode combines power with stable control. Powerful enough for the steepest climbs and controllable balance and traction for exciting descents.

  • SHIMANO GRX

    Dedicated design for gravel riding with anti-slip brake levers and a rear derailleur originally introduced for aggressive MTB which reduces chain slap, improves chain retention and minimizes the risk of hitting rocks over rough terrain.

  • Integrated Hub Speed Sensor

    Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

  • Yamaha 500Wh Battery

    Yamaha’s proven 500 Watt-hour Lithium-ion battery pack technology is encased inside the frame with easy access to remove for charging off the bike and provides you with reliable & long-lasting energy to power your rides.

Shop Yamaha Gear & Apparel

Shop Now



SPECIFICATIONS



SUGGESTED USE Gravel, Road, Adventure
COLORS

Blue Steel  Blue Steel
SIZE 54cm (S), 57cm (M), 60cm (L)
MSRP $4,199
TOTAL WEIGHT xx.xlbs (L)
MOTOR Yamaha PWSeries
ST 3-bolt Mount
Square Taper Spindle
Quad Sensor System with rear hub speed sensor
Weight: 7.71lb
Rated power: 250W (Nominal), 500W (Max.)
Max. torque: 70Nm
Max. cadence support: xxxrpm
Max. speed support: 28mph
Support modes: AUTO, ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY Yamaha 500Wh with Charge-life indicator and Self-diagnosis display.
Side-exiting dock station with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME

Yamaha Hydroformed Aluminum
Integrated battery
Water bottle boss
Tapered Headtube
Internal shift/brake hose routing
FORK

Fork  One-Piece Aluminum
12x100mm Thru-Axle
Fender and rack compatible
Internal brake hose routing
HEADSET

Integrated bearing with 30mm of spacers
STEM

Yamaha Alloy 4-bolt faceplate
31.8 diameter
80mm length (S)
90mm length (M)
100mm length (L)
HANDLEBAR Flare drop
31.8mm diameter
44cm width
GRIPS/TAPE Padded cork tape
SEATPOST/SADDLE CLAMP Alloy 30.9 x 340mm (S), 395mm (M), 440mm (L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR Alloy 2-bolt 35.0mm
SADDLE Yamaha Off-Road Cro-Mo Rail
SHIFTERS Shimano GRX 11-speed RX600
REAR DERAILLEUR

Shimano GRX
CRANKARM Square taper
165mm (S, M)
170mm (L)
CHAIN

KMC e11 Turbo EPT
CASSETTE

Shimano CS-M7000
11-42t
11-Speed
CHAINRING(S) Shimano GRX 44t
BRAKES/ROTORS

Shimano GRX RX600-rear, RX400-front
180mm Centerlock
RIMS 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke
SPOKES Spokes SUS304
SPOKE NIPPLES SUS304 w/ brass nipple
HUBS Front: 12x100mm TA
Rear: 12x142mm TA with integrated speed sensor
TIRES/TUBES

Maxxis Rambler 700 x 45c TR EXO 120tpi
ACCESSORIES Yamaha keys
Yamaha battery charger
Bell
WARRANTY 5-Year on Frame, Drive Unit, Battery



Specifications are subject to change without notice


Sizing & Fit

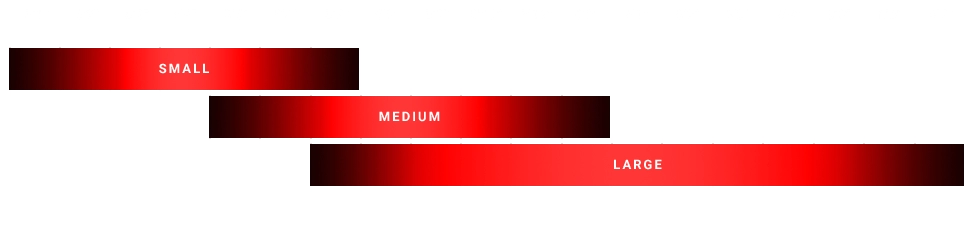

Wabash Sizing and Fit Guide

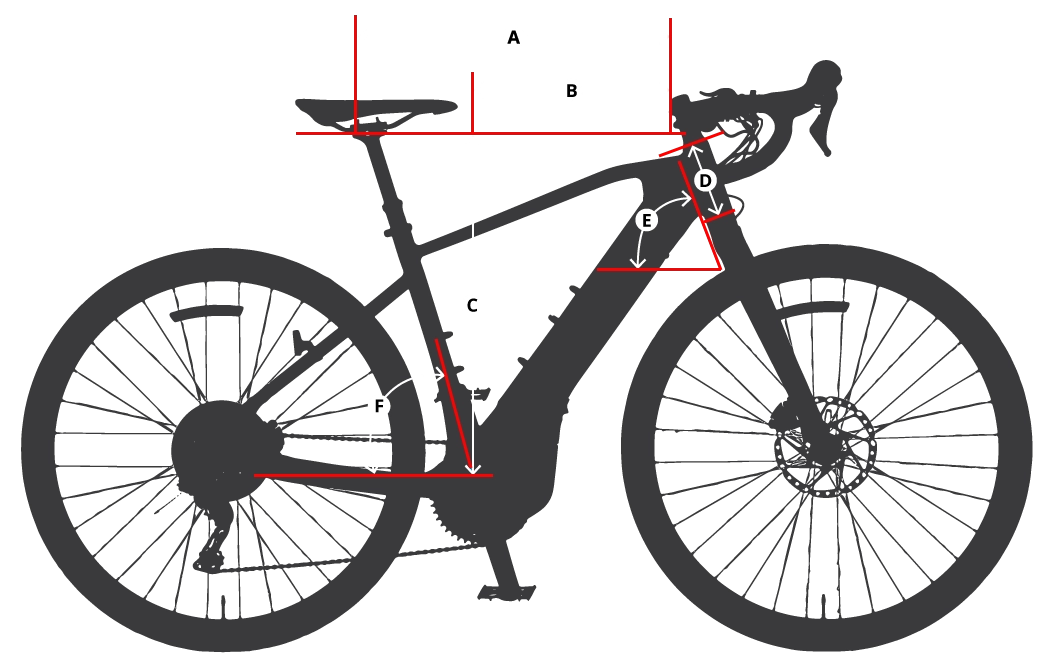

GEOMETRY


S

A TOP TUBE (mm) 535
B REACH LENGTH (mm) 368
C STACK HEIGHT (mm) 595
D HEAD TUBE LENGTH (mm) 121
E HEAD TUBE ANGLE 71.1°
F SEAT TUBE ANGLE 74.4°
  STANDOVER HEIGHT (mm) 781
  HANDLEBAR WIDTH (cm) 44
  CRANK ARM LENGTH (mm) 165
  SEAT POST LENGTH (mm) 340
  STEM LENGTH (mm) 80
  BB DROP (mm) 73
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1057
  SEAT TUBE LENGTH (mm) 429

M

A TOP TUBE 565
B REACH LENGTH 382
C STACK HEIGHT 607
D HEAD TUBE LENGTH 131
E HEAD TUBE ANGLE 71.8°
F SEAT TUBE ANGLE 73.3°
  STANDOVER HEIGHT 818
  HANDLEBAR WIDTH 44
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 395
  STEM LENGTH 90
  BB DROP 73
  REAR CENTER 464
  WHEELBASE 1068
  SEAT TUBE LENGTH 490

L

A TOP TUBE 595
B REACH LENGTH 402
C STACK HEIGHT 617
D HEAD TUBE LENGTH 142
E HEAD TUBE ANGLE 71.9°
F SEAT TUBE ANGLE 72.6°
  STANDOVER HEIGHT 852
  HANDLEBAR WIDTH 44
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 440
  STEM LENGTH 100
  BB DROP 73
  REAR CENTER 464
  WHEELBASE 1090
  SEAT TUBE LENGTH 551
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 535 565 595
B REACH LENGTH (mm) 368 382 402
C STACK HEIGHT (mm) 595 607 617
D HEAD TUBE LENGTH (mm) 121 131 142
E HEAD TUBE ANGLE 71.1° 71.8° 71.9°
F SEAT TUBE ANGLE 74.4° 73.3° 72.6°
  STANDOVER HEIGHT (mm) 781 818 852
  HANDLEBAR WIDTH (cm) 44 44 44
  CRANK ARM LENGTH (mm) 165 170 170
  SEAT POST LENGTH (mm) 340 395 440
  STEM LENGTH (mm) 80 90 100
  BB DROP (mm) 73 73 73
  REAR CENTER (mm) 464 464 464
  WHEELBASE (mm) 1057 1068 1090
  SEAT TUBE LENGTH (mm) 429 490 551



GEOMETRY & SIZING


S

A TOP TUBE (mm) 535
B REACH LENGTH (mm) 368
C STACK HEIGHT (mm) 595
D HEAD TUBE LENGTH (mm) 121
E HEAD TUBE ANGLE 71.1°
F SEAT TUBE ANGLE 74.4°
  STANDOVER HEIGHT (mm) 781
  HANDLEBAR WIDTH (cm) 44
  CRANK ARM LENGTH (mm) 165
  SEAT POST LENGTH (mm) 340
  STEM LENGTH (mm) 80
  BB DROP (mm) 73
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1057
  SEAT TUBE LENGTH (mm) 429

M

A TOP TUBE 565
B REACH LENGTH 382
C STACK HEIGHT 607
D HEAD TUBE LENGTH 131
E HEAD TUBE ANGLE 71.8°
F SEAT TUBE ANGLE 73.3°
  STANDOVER HEIGHT 818
  HANDLEBAR WIDTH 44
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 395
  STEM LENGTH 90
  BB DROP 73
  REAR CENTER 464
  WHEELBASE 1068
  SEAT TUBE LENGTH 490

L

A TOP TUBE 595
B REACH LENGTH 402
C STACK HEIGHT 617
D HEAD TUBE LENGTH 142
E HEAD TUBE ANGLE 71.9°
F SEAT TUBE ANGLE 72.6°
  STANDOVER HEIGHT 852
  HANDLEBAR WIDTH 44
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 440
  STEM LENGTH 100
  BB DROP 73
  REAR CENTER 464
  WHEELBASE 1090
  SEAT TUBE LENGTH 551
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 535 565 595
B REACH LENGTH (mm) 368 382 402
C STACK HEIGHT (mm) 595 607 617
D HEAD TUBE LENGTH (mm) 121 131 142
E HEAD TUBE ANGLE 71.1° 71.8° 71.9°
F SEAT TUBE ANGLE 74.4° 73.3° 72.6°
  STANDOVER HEIGHT (mm) 781 818 852
  HANDLEBAR WIDTH (cm) 44 44 44
  CRANK ARM LENGTH (mm) 165 170 170
  SEAT POST LENGTH (mm) 340 395 440
  STEM LENGTH (mm) 80 90 100
  BB DROP (mm) 73 73 73
  REAR CENTER (mm) 464 464 464
  WHEELBASE (mm) 1057 1068 1090
  SEAT TUBE LENGTH (mm) 429 490 551
