No need to load an eMTB onto your car to ride that hero dirt on your local trails. Adventure begins at the end of the driveway with electric pedal assist that will get you to the singletrack and up the most giant climbs. Explore new routes and take the long-way home. You’ll be back before you know it.

MSRP

3,499

Color

 YDX-Torc Flat Black

Start Your Journey

YDX-TORC GALLERY

YDX-TORC, agile XC mountain bike, aggressive performance and fastest response.



YDX-TORC FEATURES

The YDX-TORC is Yamaha’s 27.5 hardtail mountain bike powered by the all-new PW-X Drive System.

PW-X Drive Unit

PW-X Drive Unit

PW-X is Yamaha’s lightest and most responsive drive unit designed to deliver a totally new mountain bike riding experience. Five levels of assist provide power for every situation in a way that feels smooth and natural. We call it “Pure Ride”, and with one ride you’ll understand why.

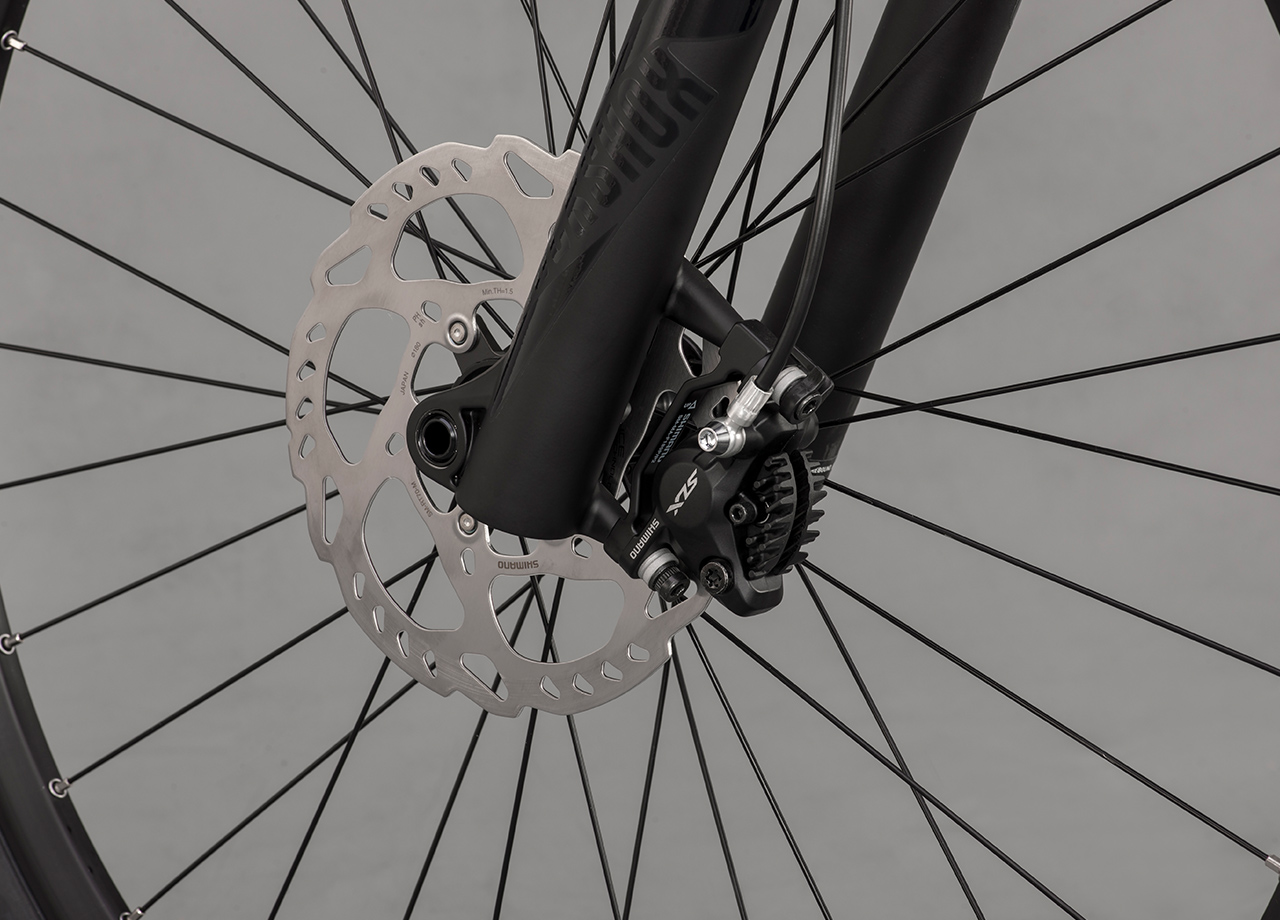

Hydraulic Disc Brakes

Hydraulic Disc Brakes

YDX TORC is equipped with powerful Shimano SLX hydraulic disc brakes with 180mm rotors for strong, dependable braking in all conditions.

Integrated Speed Sensor

Integrated Speed Sensor

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

Multi-Function Display

Multi-Function Display

Simple, tough and highly efficient best describes YDX TORC’s multi-function LCD display. The main LCD interface provides a host of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch.

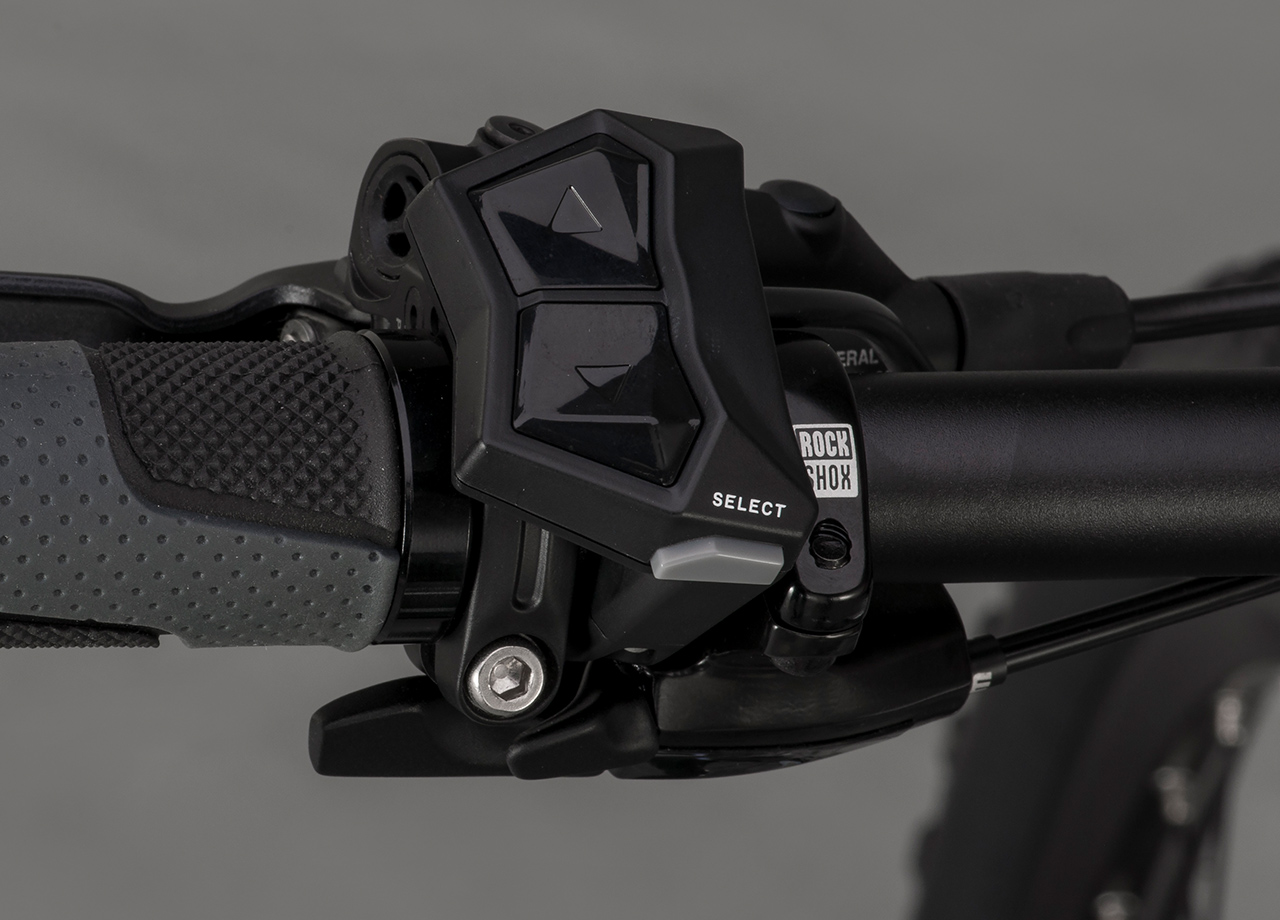

Ergonomic Control Switches

Ergonomic Control Switches

Many times it’s the details that make a good product great. Check out YDX TORC’s ergonomic control switches. They’re large and easy to operate in all types of conditions while wearing mountain bike gloves.

Yamaha 500Wh Battery

Yamaha 500Wh Battery

Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy for your mountain bike adventures. When it comes time to replenish, you can charge the battery pack on or off the bike using the Yamaha’s high speed charger.

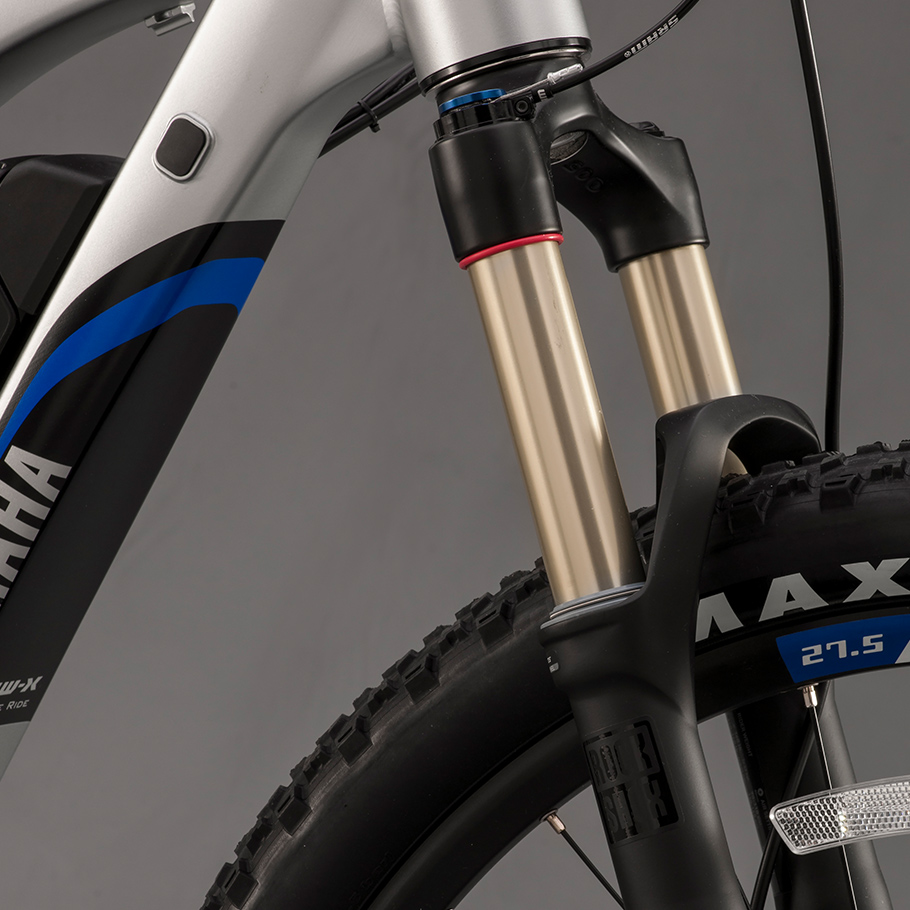

RockShox Recon

RockShox Recon

YDX TORC is equipped with the RockShox Recon Gold RL front fork featuring 120mm of travel, compression adjustment and remote lock out.

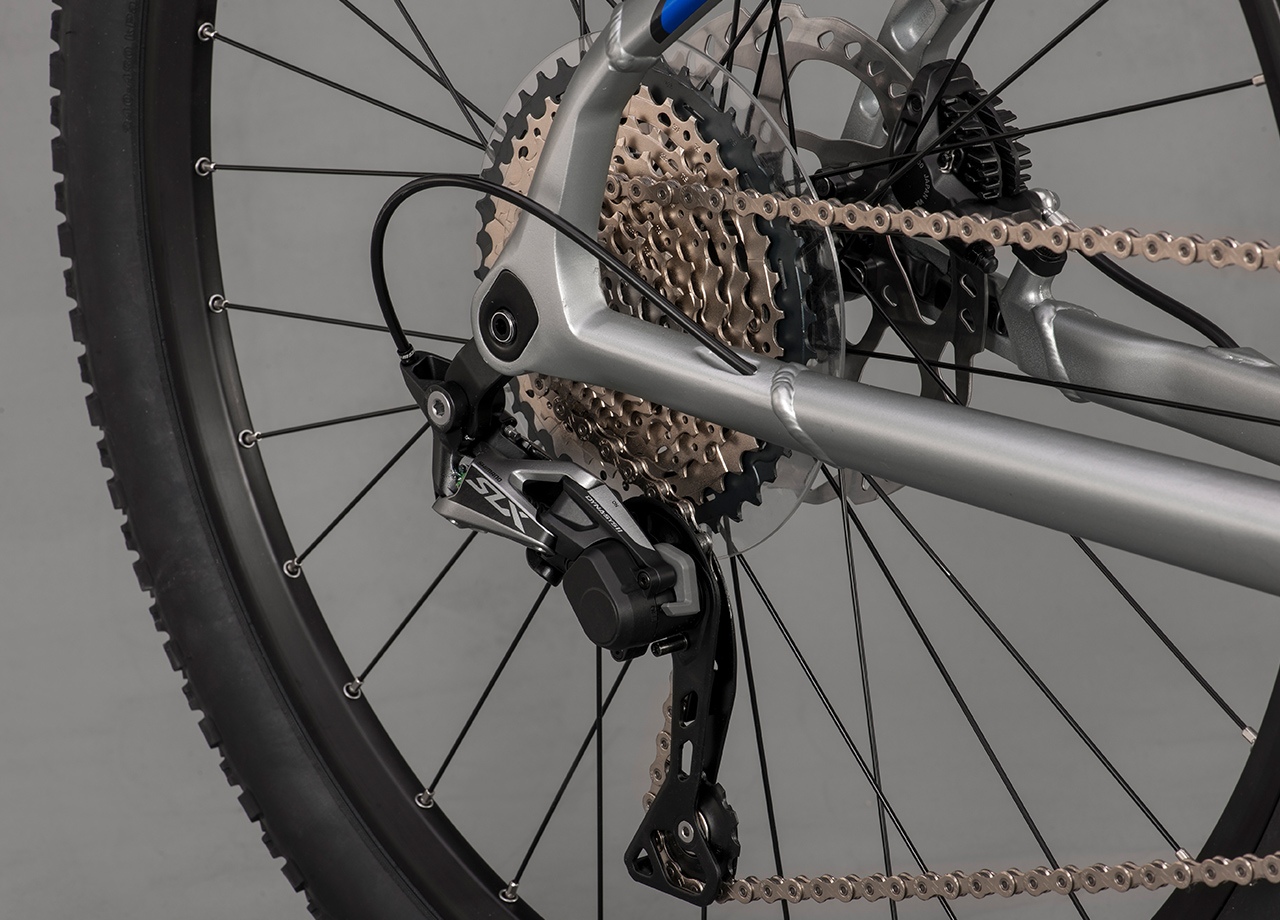

Shimano SLX Shadow Rear Derailleur

Shimano SLX Shadow Rear Derailleur

YDX TORC’s 11-speed shifting duties are handled by Shimano’s excellent SLX Shadow rear derailleur.

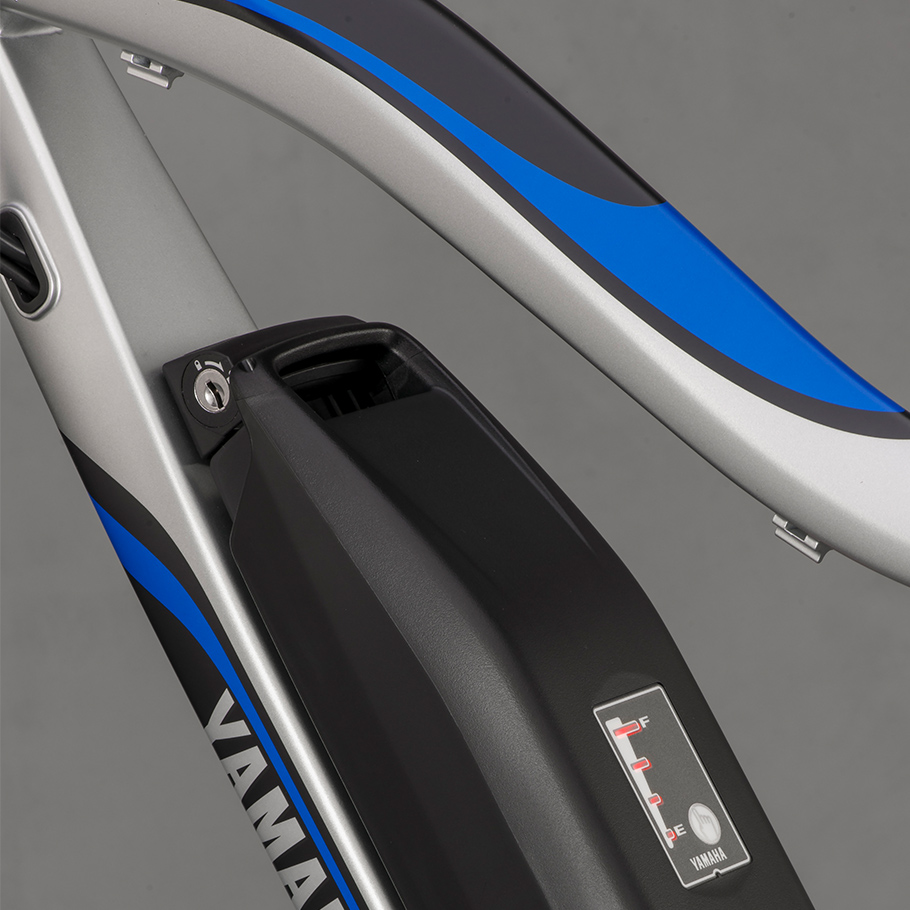

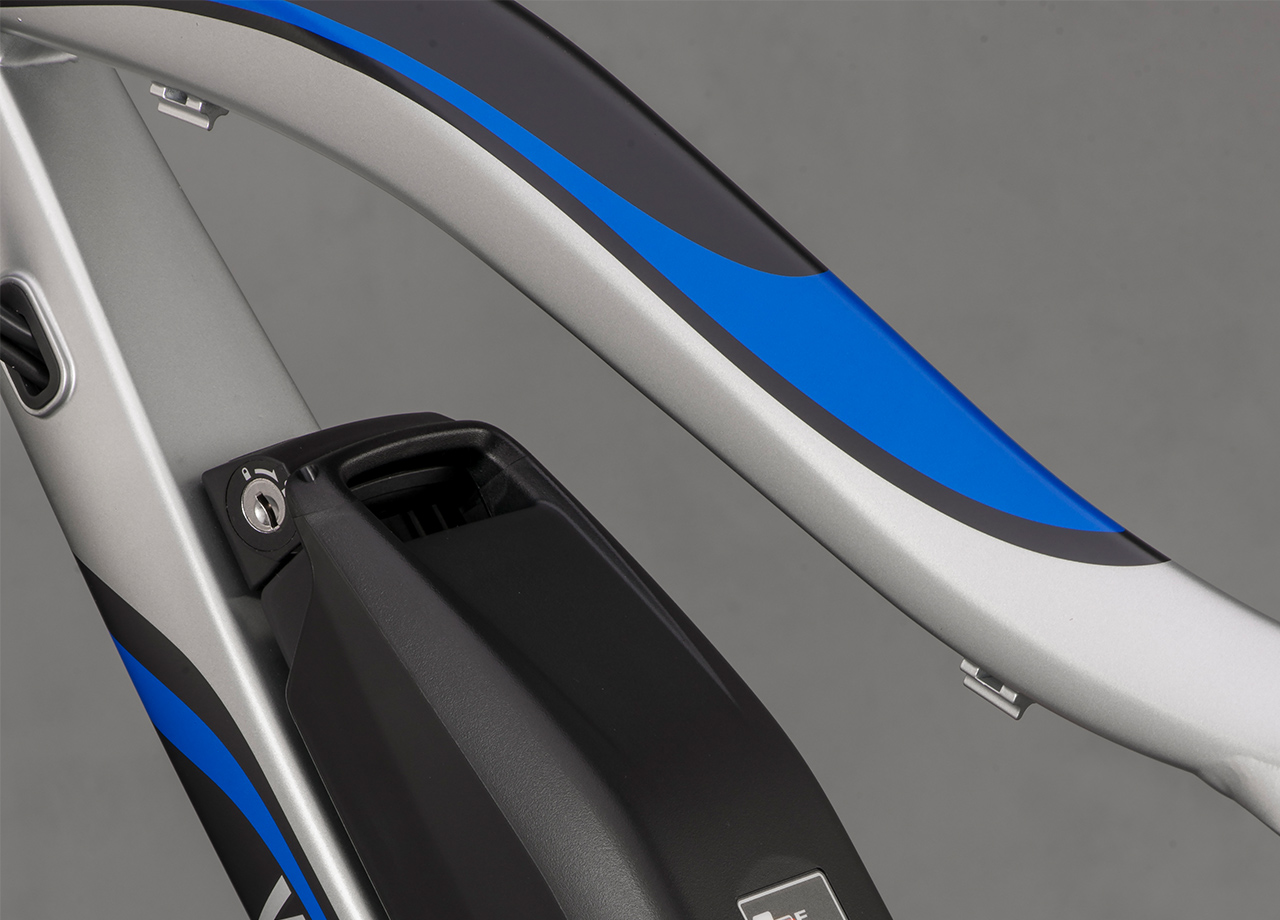

Dropper Post

Dropper Post Ready

Cable housing guides are located under the top tube for external dropper post, or use the housing port located on the drive side of the downtube to route housing for an internal dropper post.

  • PW-X Drive Unit

    PW-X is Yamaha’s lightest and most responsive drive unit designed to deliver a totally new mountain bike riding experience. Five levels of assist provide power for every situation in a way that feels smooth and natural. We call it “Pure Ride”, and with one ride you’ll understand why.

  • Hydraulic Disc Brakes

    YDX TORC is equipped with powerful Shimano SLX hydraulic disc brakes with 180mm rotors for strong, dependable braking in all conditions.

  • Integrated Speed Sensor

    Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Perfect for mountain biking. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

  • Multi-Function Display

    Simple, tough and highly efficient best describes YDX TORC’s multi-function LCD display. The main LCD interface provides a host of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch.

  • Ergonomic Control Switches

    Many times it’s the details that make a good product great. Check out YDX TORC’s ergonomic control switches. They’re large and easy to operate in all types of conditions while wearing mountain bike gloves.

  • Yamaha 500Wh Battery

    Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy for your mountain bike adventures. When it comes time to replenish, you can charge the battery pack on or off the bike using the Yamaha’s high speed charger.

  • RockShox Recon

    YDX TORC is equipped with the RockShox Recon Gold RL front fork featuring 120mm of travel, compression adjustment and remote lock out.

  • Shimano SLX Shadow Rear Derailleur

    YDX TORC’s 11-speed shifting duties are handled by Shimano’s excellent SLX Shadow rear derailleur.

  • Dropper Post Ready

    Cable housing guides are located under the top tube for external dropper post, or use the housing port located on the drive side of the downtube to route housing for an internal dropper post.

Shop All E-Bike Accessories

Shop Now



SPECIFICATIONS



SUGGESTED USE XC Trail, Mountain
COLORS

Quicksilver/Team Yamaha Blue  Quicksilver/Team Yamaha Blue

Flat Black  Flat Black
SIZE 15" (S), 17" (M), 19" (L)
MSRP $3,499
TOTAL WEIGHT 46.7lb (M)
MOTOR PW-X
Center mount
ISIS splined spindle
Triple Sensor System with integrated speed sensor as part of rear hub
Weight: 6.83lb
Rated power: 250W (Nominal), 500W (Max)
Max torque: 80Nm
Max cadence support: 120rpm
Max speed support: 20mph
Support modes: ECO+, ECO, STANDARD, HIGH, EXPW
Protective motor cover included
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (5) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, 3-color LED power assist level light indicator

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Side-exiting dock station with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME Yamaha hydroformed and butted alluminum tubing
Tapered headtube
Internal cable/housing routing
Additional mounts for external dropper post compatibility
2-bolt motor mount
12 x 142 rear spacing
Integrated speed sensor harness
FORK RockShox Recon RL 120mm travel, 15mm Maxle™ , Remote lock-out lever.
Tapered aluminum steerer, 1 1/8in - 1 1/2in
HEADSET Integrated tapered headset with 30mm headset spacers
STEM Yamaha Alloy 4-bolt faceplate
31.8 diameter
60mm length
HANDLEBAR Alloy 20mm riser bar
31.8mm diameter
730mm width
GRIPS/TAPE Locking Dual Core
SEATPOST/SADDLE CLAMP Alloy 30.9 x 300mm (S), 330mm (M), 380mm (L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR Quick-Release Lever 35.0mm
SADDLE Yamaha Plus Cro-Mo Rails
SHIFTERS Shimano SLX
11-speed
FRONT DERAILLEUR N/A
REAR DERAILLEUR Shimano SLX GS Shadow +
CRANKARM FSA ISIS
170mm
CHAIN KMC X11e
CASSETTE Shimano SLX
11-speed
11/42T
CHAINRING(S) Praxxis Wave 36T 104 BCD
BRAKES/ROTORS Shimano SLX
180mm SM-RT68 Centerlock Rotors
RIMS 27.5in.
Welded and pinned Rim
Eyelet spoke holes
Width: 26mm (OUTSIDE) 21mm (INSIDE)
SPOKES Spokes SUS304
SPOKE NIPPLES Brass
HUBS Anodized
Centerlock brake mount
Front hub 15 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES Maxxis Ardent 27.5 x 2.25in
Silkworm puncture protection under tread
PV tube
ACCESSORIES Yamaha keys Yamaha battery charger
Bell
WARRANTY 3-Year on Frame, Motor, Battery*
Component Manufacturer's warranty** is supported by Yamaha



Specifications are subject to change without notice

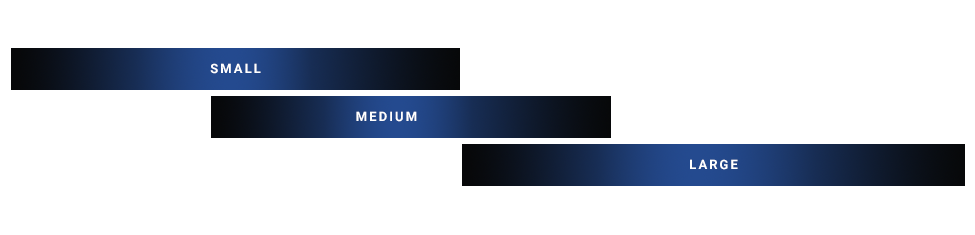

Sizing & Fit



GEOMETRY


S

A TOP TUBE (mm) 553
B REACH LENGTH (mm) 372
C STACK HEIGHT (mm) 610
D STANDOVER HEIGHT (mm) 719
E HEAD TUBE LENGTH (mm) 117
F HEAD TUBE ANGLE 68°
G SEAT TUBE ANGLE 73.5°
  HANDLEBAR WIDTH (mm) 730
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 300
  STEM LENGTH (mm) 60
  BB DROP (mm) 39
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1101
  SEAT TUBE LENGTH (mm) 390

M

A TOP TUBE 582
B REACH LENGTH 393
C STACK HEIGHT 616
D STANDOVER HEIGHT 728
E HEAD TUBE LENGTH 124
F HEAD TUBE ANGLE 68
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 730
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 330
  STEM LENGTH 60
  BB DROP 39
  REAR CENTER 455
  WHEELBASE 1125
  SEAT TUBE LENGTH 420

L

A TOP TUBE 617
B REACH LENGTH 420
C STACK HEIGHT 625
D STANDOVER HEIGHT 749
E HEAD TUBE LENGTH 134
F HEAD TUBE ANGLE 68
G SEAT TUBE ANGLE 72.5
  HANDLEBAR WIDTH 730
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 380
  STEM LENGTH 60
  BB DROP 39
  REAR CENTER 455
  WHEELBASE 1155
  SEAT TUBE LENGTH 470
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 553 582 617
B REACH LENGTH (mm) 372 393 420
C STACK HEIGHT (mm) 610 616 625
D STANDOVER HEIGHT (mm) 719 728 749
E HEAD TUBE LENGTH (mm) 117 124 134
F HEAD TUBE ANGLE 68° 68° 68°
G SEAT TUBE ANGLE 73.5° 73° 72.5°
  HANDLEBAR WIDTH (mm) 730 730 730
  CRANK ARM LENGTH (mm) 170 170 170
  SEAT POST LENGTH (mm) 300 330 380
  STEM LENGTH (mm) 60 60 60
  BB DROP (mm) 39 39 39
  REAR CENTER (mm) 455 455 455
  WHEELBASE (mm) 1101 1125 1155
  SEAT TUBE LENGTH (mm) 390 420 470



GEOMETRY & SIZING


S

A TOP TUBE (mm) 553
B REACH LENGTH (mm) 372
C STACK HEIGHT (mm) 610
D STANDOVER HEIGHT (mm) 719
E HEAD TUBE LENGTH (mm) 117
F HEAD TUBE ANGLE 68°
G SEAT TUBE ANGLE 73.5°
  HANDLEBAR WIDTH (mm) 730
  CRANK ARM LENGTH (mm) 170
  SEAT POST LENGTH (mm) 300
  STEM LENGTH (mm) 60
  BB DROP (mm) 39
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1101
  SEAT TUBE LENGTH (mm) 390

M

A TOP TUBE 582
B REACH LENGTH 393
C STACK HEIGHT 616
D STANDOVER HEIGHT 728
E HEAD TUBE LENGTH 124
F HEAD TUBE ANGLE 68
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 730
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 330
  STEM LENGTH 60
  BB DROP 39
  REAR CENTER 455
  WHEELBASE 1125
  SEAT TUBE LENGTH 420

L

A TOP TUBE 617
B REACH LENGTH 420
C STACK HEIGHT 625
D STANDOVER HEIGHT 749
E HEAD TUBE LENGTH 134
F HEAD TUBE ANGLE 68
G SEAT TUBE ANGLE 72.5
  HANDLEBAR WIDTH 730
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 380
  STEM LENGTH 60
  BB DROP 39
  REAR CENTER 455
  WHEELBASE 1155
  SEAT TUBE LENGTH 470
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 553 582 617
B REACH LENGTH (mm) 372 393 420
C STACK HEIGHT (mm) 610 616 625
D STANDOVER HEIGHT (mm) 719 728 749
E HEAD TUBE LENGTH (mm) 117 124 134
F HEAD TUBE ANGLE 68° 68° 68°
G SEAT TUBE ANGLE 73.5° 73° 72.5°
  HANDLEBAR WIDTH (mm) 730 730 730
  CRANK ARM LENGTH (mm) 170 170 170
  SEAT POST LENGTH (mm) 300 330 380
  STEM LENGTH (mm) 60 60 60
  BB DROP (mm) 39 39 39
  REAR CENTER (mm) 455 455 455
  WHEELBASE (mm) 1101 1125 1155
  SEAT TUBE LENGTH (mm) 390 420 470
