Your daily trek isn’t like others. You’re surrounded by hills and you demand more than just a regular fitness bike. You want the efficiency of a road bike, ergonomic comfort of a flat handlebar and power assist technology that allows you to charge the day. Grab your CrossCore and live Generation Go!

MSRP

2,399

Color


Ocean Blue and Bright White Dark Olive and Black

Start Your Journey

Purchase Now

Buy Online

Find a Retailer

CROSSCORE GALLERY

Fitness hybrid design for efficiency and ergonomic comfort



CROSSCORE FEATURES

While providing the smooth power assist expected by many e-bike users, our systems are equipped with powerful support and a natural, organic assist feel even in the high-speed setting.

PWseries SE Drive Unit

PWSeries SE Drive Unit

Integrated to the bottom bracket, the drive unit provides a low center of gravity for exceptional handling. Four levels of smooth, powerful assist deliver a ride experience the feels natural and organic.

Mechanical Disc Brakes

Mechanical Disc Brakes

Shimano Sora mechanical disc brakes with 160mm center lock rotors provide strong,  dependable braking in all conditions.

Double Front Chainring

Double Front Chainring

Shimano Sora front derailleur and the double chainring (50/34T) offer quick shifting with optimum gear range.

Rear Rack and Fender Mounts

Rear Rack and Fender Mounts

CrossCore has built-in bosses ready to accept Yamaha’s accessory rear rack with integrated LED taillight and rear fender.

Yamaha 500Wh Battery

Yamaha 500Wh Battery

Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off CrossCore using the Yamaha high speed charger.

Fender Mount Tabs

Fender Mount Tabs

CrossCore's fork has mounting tabs for easy installation of Yamaha’s accessory front fender.

LED Headlight

LED Headlight

CrossCore is equipped with a powerful LED headlight to help guide the way. The headlight’s on/off button is built into CrossCore’s multi-function display housing for easy access while riding.

Integrated Speed Sensor

Integrated Speed Sensor

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

Multi-Function Display

Multi-Function Display

The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. The color-coded LED assist level indicator is easy to see at a glance.

  • PWSeries SE Drive Unit

    Integrated to the bottom bracket, the drive unit provides a low center of gravity for exceptional handling. Four levels of smooth, powerful assist deliver a ride experience the feels natural and organic.

  • Mechanical Disc Brakes

    Shimano Sora mechanical disc brakes with 160mm center lock rotors provide strong,  dependable braking in all conditions.

  • Double Front Chainring

    Shimano Sora front derailleur and the double chainring (50/34T) offer quick shifting with optimum gear range.

  • Rear Rack and Fender Mounts

    CrossCore has built-in bosses ready to accept Yamaha’s accessory rear rack with integrated LED taillight and rear fender.

  • Yamaha 500Wh Battery

    Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off CrossCore using the Yamaha high speed charger.

  • Fender Mount Tabs

    CrossCore's fork has mounting tabs for easy installation of Yamaha’s accessory front fender.

  • LED Headlight

    CrossCore is equipped with a powerful LED headlight to help guide the way. The headlight’s on/off button is built into CrossCore’s multi-function display housing for easy access while riding.

  • Integrated Speed Sensor

    Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

  • Multi-Function Display

    The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. The color-coded LED assist level indicator is easy to see at a glance.

Shop All E-Bike Accessories

Shop Now



SPECIFICATIONS



SUGGESTED USE Road, Urban Bike Path
COLORS

Slate Gray  Slate Gray

White Opal/Blue  White Opal/Blue

Ocean Blue/Bright White  Ocean Blue/Bright White

Dark Olive/Black  Dark Olive/Black
SIZE 53cm (S), 55cm (M), 58cm (L)
MSRP $2,399
TOTAL WEIGHT 43.5lb (M)
MOTOR PWSeries SE
Center mount
Square taper spindle
Triple Sensor System with integrated speed sensor as part of rear hub
Weight: 7.71lb
Rated power: 250W (Nominal), 500W (Max)
Max torque: 70Nm
Max cadence support: 110rpm
Max speed support: 20mph Support modes: ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY Yamaha 500Wh with charge-life indicator and self-diagnosis display
Side-exiting dock station with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME Yamaha hydroformed and butted alluminum tubing
Internal cable/housing routing
Accessory mount
Fender and Rack compatible
3-bolt motor mount
12 x 142 rear spacing
Integrated speed sensor harness
FORK Alloy, 12mm thru-axle, fender compatible, internal cable housing routed
1 1/8in steerer
HEADSET Integrated headset with 30mm headset spacers
STEM Yamaha Alloy 4-bolt faceplate
31.8 diameter
80mm length (53cm, 55cm)
100mm length (58cm)
HANDLEBAR Alloy flat bar zero degree rise
31.8mm diameter
640mm width
GRIPS/TAPE Locking ergonomic two-tone
SEATPOST/SADDLE CLAMP Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR Alloy 2-bolt 35.0mm
SADDLE Yamaha Road Plus Cro-Mo Rail
SHIFTERS Shimano 9-speed Sora trigger shifter
Gear selection window
FRONT DERAILLEUR Shimano Sora (2 x 9) Braze-on
REAR DERAILLEUR Shimano Sora RD-3000 GS 9-speed
CRANKARM Square taper
165mm (S)
170mm (M)
170mm (L)
CHAIN KMC X9e
CASSETTE Shimano 9-speed
11/30T
CHAINRING(S) 50/34T E-Ring 110 BCD
BRAKES/ROTORS Shimano Sora BL-R3000 Mechanical Disc 160mm SM-RT68 Centerlock Rotor
RIMS 700c
Dual channel welded pin rim
Eyelet spoke holes
Width 24.5mm (OUTSIDE) 19mm (INSIDE)
SPOKES Spokes SUS304
SPOKE NIPPLES Brass
HUBS Anodized.
Centerlock brake mount.
front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES CST Sensamo Sumo 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use
PV Tube
ACCESSORIES Yamaha Keys
Yamaha battery charger
LED Headlamp
Bell
WARRANTY 3-Year on Frame, Motor, Battery*
Component Manufacturer's warranty** is supported by Yamaha



Specifications are subject to change without notice


Sizing & Fit

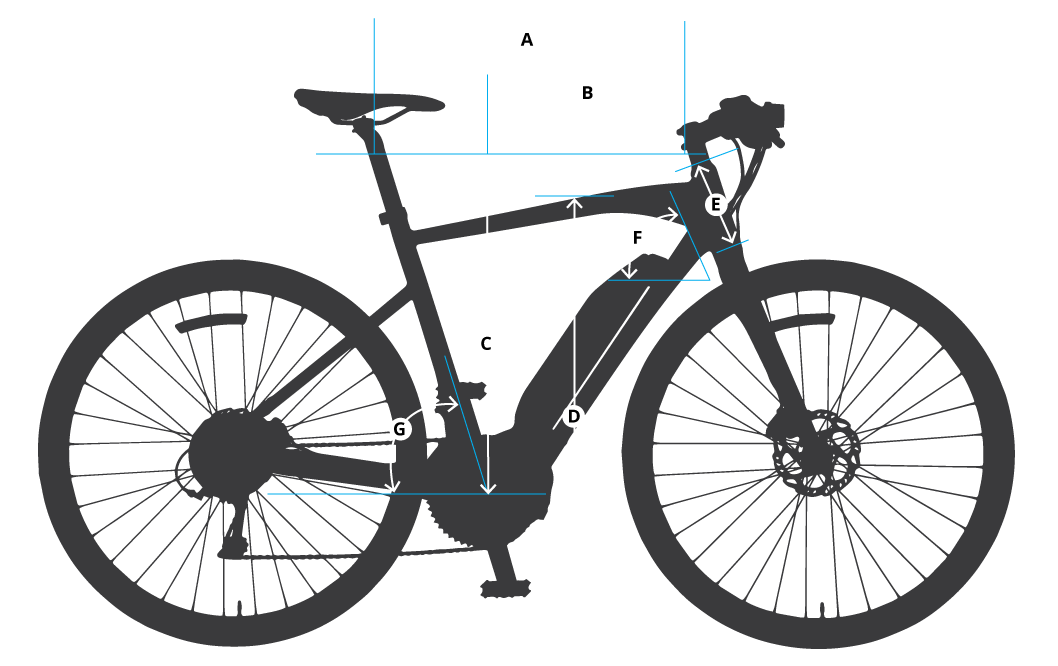

GEOMETRY


S

A TOP TUBE (mm) 530
B REACH LENGTH (mm) 373
C STACK HEIGHT (mm) 548
D STANDOVER HEIGHT (mm) 725
E HEAD TUBE LENGTH (mm) 130
F HEAD TUBE ANGLE 71°
G SEAT TUBE ANGLE 74°
  HANDLEBAR WIDTH (mm) 640
  CRANK ARM LENGTH (mm) 165
  SEAT POST LENGTH (mm) 260
  STEM LENGTH (mm) 80
  BB DROP (mm) 61
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1039
  SEAT TUBE LENGTH (mm) 430

M

A TOP TUBE 550
B REACH LENGTH 392
C STACK HEIGHT 555
D STANDOVER HEIGHT 751
E HEAD TUBE LENGTH 135
F HEAD TUBE ANGLE 72
G SEAT TUBE ANGLE 74
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 315
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1051
  SEAT TUBE LENGTH 463

L

A TOP TUBE 580
B REACH LENGTH 405
C STACK HEIGHT 572
D STANDOVER HEIGHT 797
E HEAD TUBE LENGTH 150
F HEAD TUBE ANGLE 72.5
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 350
  STEM LENGTH 100
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1064
  SEAT TUBE LENGTH 530
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 530 550 580
B REACH LENGTH (mm) 373 392 405
C STACK HEIGHT (mm) 548 555 572
D STANDOVER HEIGHT (mm) 725 751 797
E HEAD TUBE LENGTH (mm) 130 135 150
F HEAD TUBE ANGLE 71° 72° 72.5°
G SEAT TUBE ANGLE 74° 74° 73°
  HANDLEBAR WIDTH (mm) 640 640 640
  CRANK ARM LENGTH (mm) 165 170 170
  SEAT POST LENGTH (mm) 260 315 350
  STEM LENGTH (mm) 80 80 100
  BB DROP (mm) 61 61 61
  REAR CENTER (mm) 455 455 455
  WHEELBASE (mm) 1039 1051 1064
  SEAT TUBE LENGTH (mm) 430 463 530



GEOMETRY & SIZING


S

A TOP TUBE (mm) 530
B REACH LENGTH (mm) 373
C STACK HEIGHT (mm) 548
D STANDOVER HEIGHT (mm) 725
E HEAD TUBE LENGTH (mm) 130
F HEAD TUBE ANGLE 71°
G SEAT TUBE ANGLE 74°
  HANDLEBAR WIDTH (mm) 640
  CRANK ARM LENGTH (mm) 165
  SEAT POST LENGTH (mm) 260
  STEM LENGTH (mm) 80
  BB DROP (mm) 61
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1039
  SEAT TUBE LENGTH (mm) 430

M

A TOP TUBE 550
B REACH LENGTH 392
C STACK HEIGHT 555
D STANDOVER HEIGHT 751
E HEAD TUBE LENGTH 135
F HEAD TUBE ANGLE 72
G SEAT TUBE ANGLE 74
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 315
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1051
  SEAT TUBE LENGTH 463

L

A TOP TUBE 580
B REACH LENGTH 405
C STACK HEIGHT 572
D STANDOVER HEIGHT 797
E HEAD TUBE LENGTH 150
F HEAD TUBE ANGLE 72.5
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 350
  STEM LENGTH 100
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1064
  SEAT TUBE LENGTH 530
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 530 550 580
B REACH LENGTH (mm) 373 392 405
C STACK HEIGHT (mm) 548 555 572
D STANDOVER HEIGHT (mm) 725 751 797
E HEAD TUBE LENGTH (mm) 130 135 150
F HEAD TUBE ANGLE 71° 72° 72.5°
G SEAT TUBE ANGLE 74° 74° 73°
  HANDLEBAR WIDTH (mm) 640 640 640
  CRANK ARM LENGTH (mm) 165 170 170
  SEAT POST LENGTH (mm) 260 315 350
  STEM LENGTH (mm) 80 80 100
  BB DROP (mm) 61 61 61
  REAR CENTER (mm) 455 455 455
  WHEELBASE (mm) 1039 1051 1064
  SEAT TUBE LENGTH (mm) 430 463 530
